Overview - Steering Column Trim Panel

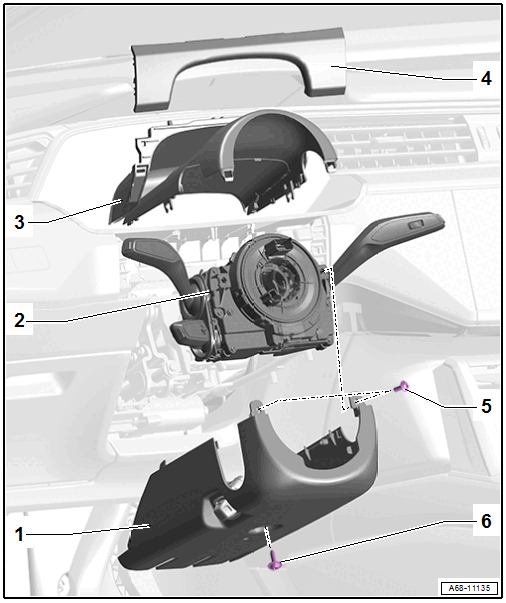

Fig 1: Exploded View Of Steering Column Trim Panel
GWWA68-11135Courtesy of AUDI OF AMERICA, LLC
  1. Lower Steering Column Trim Panel
  2. Steering Column Switch Module
  3. Upper Steering Column Trim Panel
  4. Gap Cover
  5. Bolt
    • Quantity: 2
    • 2.5 Nm
  6. Bolt
    • 2.5 Nm
