Overview - Instrument Panel Cover, Driver Side

The overview shows an LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

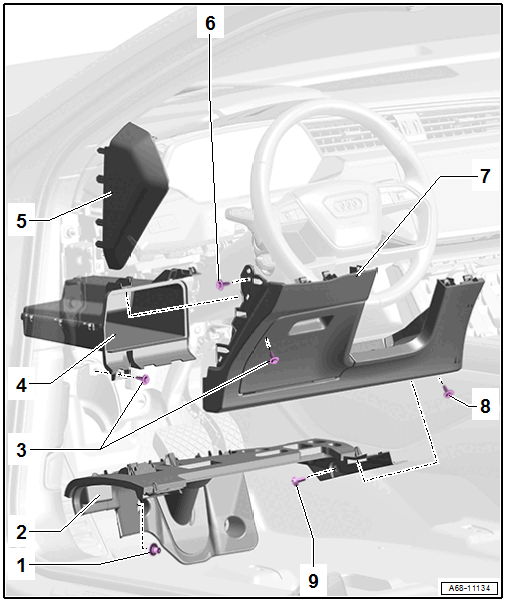

Fig 1: Exploded View Of Instrument Panel Cover, Driver Side

Courtesy of AUDI OF AMERICA, LLC

1. Nut
   • LHD vehicle: quantity 2, RHD vehicle: quantity 1
   • 2 Nm
2. Driver Side Footwell Cover
   • Refer to Driver Side Footwell Cover, Removing and Installing  .
3. Bolts
   • Quantity: 3
   • 3 Nm
4. Storage Compartment
   • Refer to Driver Side Instrument Panel Cover Storage Compartment, Removing and Installing  .
5. Side Cover
   • Refer to Instrument Panel Side Cover, Removing and Installing .
6. Bolt
   • 3 Nm
7. Driver Side Instrument Panel Cover
   • Refer to Driver Side Instrument Panel Cover, Removing and Installing  .
8. Bolt
   • Quantity: 2
   • 3 Nm
9. Bolt
   • LHD vehicle: quantity 1, RHD vehicle: quantity 2
   • 2 Nm
