Overview - Glove Compartment

The overview shows an LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

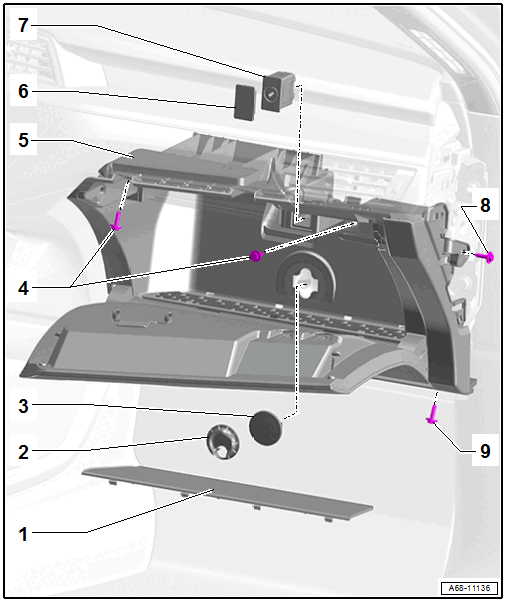

Fig 1: Exploded View Of Glove Compartment

Courtesy of AUDI OF AMERICA, LLC

1. Insert
2. Cold Air Vent
   • Installed depending on vehicle equipment
3. Blind Cover
   • Installed depending on vehicle equipment
4. Bolts
   • Quantity: 5
   • Refer to Fig 2
5. Glove Compartment
   • Refer to Glove Compartment, Removing and Installing  .
6. Blind Cover
   • Installed depending on vehicle equipment
7. Front Passenger Airbag Deactivation Key Switch -E224-
   • Installed depending on vehicle equipment
   • Refer to FRONT PASSENGER AIRBAG DEACTIVATION KEY SWITCH, REMOVING AND INSTALLING (NOT FOR NORTH AMERICA MARKET) .
8. Bolt
   • Refer to Fig 2
9. Bolt
   • Quantity: 2
   • Refer to Fig 2

Glove compartment - tightening specification and sequence

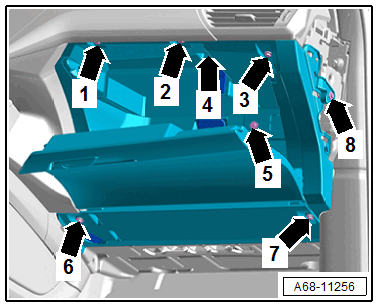

Fig 2: Glove Compartment - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC
