Overview - Cover And Cushion

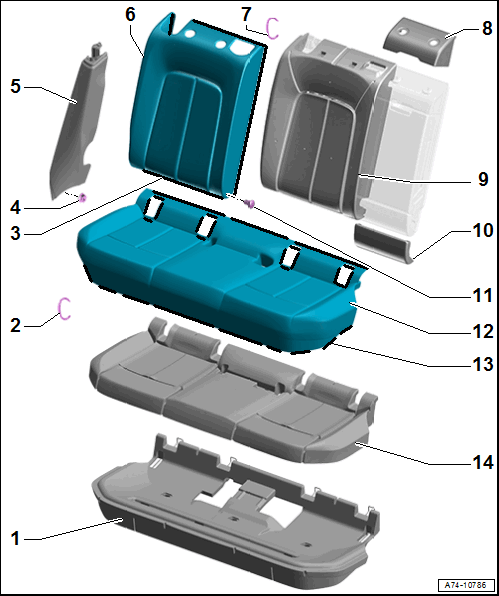

Fig 1: Exploded View Of Rear Cover And Cushion

Courtesy of AUDI OF AMERICA, LLC

Seat Frame
- Molded Part
- Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .
Upholstery Clip
- For securing the cover to the cushion
- Replace after removing
- Install at the same location with Upholstery Clip Pliers:V.A.G 1634 .
Molding
- Sewn into cover
- For attaching the cover to the backrest frame
- Check for proper seating
Nut
- 9 Nm
Side Cushion
- Removing and Installing. Refer to SIDE CUSHION, REMOVING AND INSTALLING .
Cover
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR SEAT BACKREST .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
Upholstery Clip
- For securing the cover to the cushion
- Replace after removing
- Install at the same location with Upholstery Clip Pliers:V.A.G 1634 .
Center Cushion
- Upper
- Removing and installing. Refer to CENTER CUSHION, REMOVING AND INSTALLING, UPPER .
Cushion
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR SEAT BACKREST .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
- Versions with seat heating: attach a new heating element when replacing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
Center Cushion
- Lower
- Removing and Installing. Refer to CENTER CUSHION, REMOVING AND INSTALLING, LOWER .
Clip
- For attaching the cover to the backrest frame
- Quantity: 2
Cover
- Rear Bench Seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
Molding
- Sewn into cover
- For engaging the cover to the seat frame
- Make sure it fits correctly in the seat frame
Cushion
- Rear Bench Seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
- Versions with seat heating: attach a new heating element when replacing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING .
