Overview - Rear Seat Backrest

Courtesy of AUDI OF AMERICA, LLC

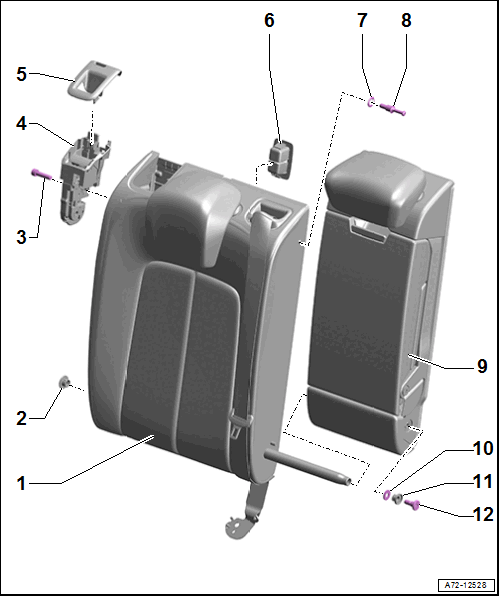

Rear Seat Backrest
- Right
- With pass-through
- Removing and Installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .
Outer Bearing Sleeve
- Removing and Installing. Refer to OUTER BEARING SLEEVE, REMOVING AND INSTALLING .
- Place in the backrest frame and push until stop.
Bolt
- Quantity: 2
- Tightening specifications. Refer to OVERVIEW - LOCKING MECHANISM.
Locking Mechanism
- For the rear seat backrest
- Removing and Installing. Refer to REAR SEAT BACKREST LOCKING MECHANISM, REMOVING AND INSTALLING .
Trim
- For the locking mechanism
- Removing and Installing. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
Cover
- For the child seat anchor
- Quantity: 2
- Engage in the anchor and press on it until it engages audibly
Washer
Locking Bolt
- For backrest with pass-through
- 15 Nm
Backrest with Pass-Through
- Removing and Installing. Refer to BACKREST WITH PASS-THROUGH, REMOVING AND INSTALLING .
Washer
Inner Bearing Sleeve
Mounting Pin
- Removing and Installing. Refer to INNER MOUNTING PIN, REMOVING AND INSTALLING .
- 15 Nm
