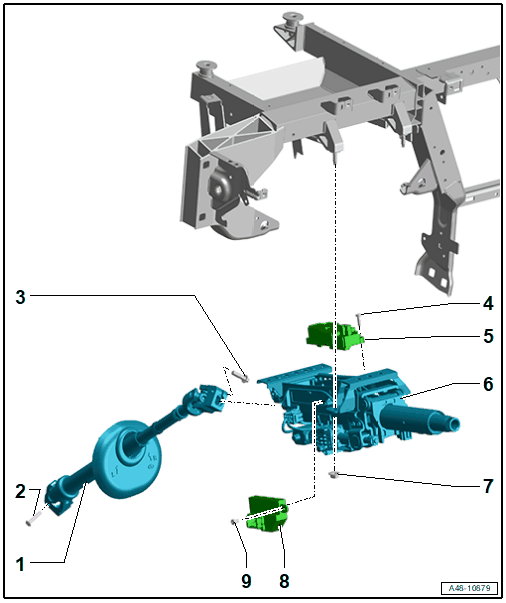

Overview - Steering Column

Courtesy of AUDI OF AMERICA, LLC

1. Steering Intermediate Shaft
   • Depending on the version with balance weight. Refer to Fig 2.
   • Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING  .
2. Bolt
   • Replace after removing
   • Self-locking
   • 20 Nm +90°
3. Bolt
   • Replace after removing
   • 20 Nm +90°
4. Bolt
   • Quantity: 3
   • 3.6 Nm
5. Electronic Steering Column Lock Control Module -J764-
   • Refer to ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE J764, REMOVING AND INSTALLING  .
6. Steering Column
   • Refer to STEERING COLUMN, REMOVING AND INSTALLING  .
7. Nut
   • Quantity: 4
   • Tightening specification and sequence. Refer to Fig 1.
8. Power Adjustable Steering Column Control Module -J866-
   • Refer to POWER ADJUSTABLE STEERING COLUMN CONTROL MODULE J866, REMOVING AND INSTALLING
9. Bolt
   • 1.5 Nm

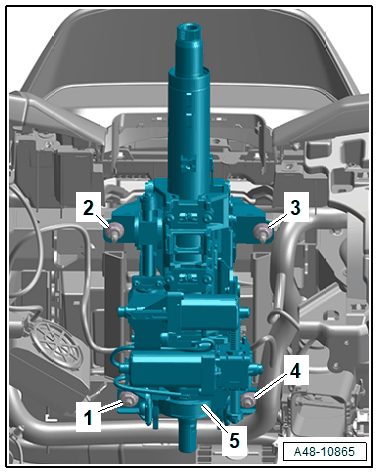

Steering column - tightening specification and sequence

Fig 1: Steering column - tightening specification and sequence

Courtesy of AUDI OF AMERICA, LLC

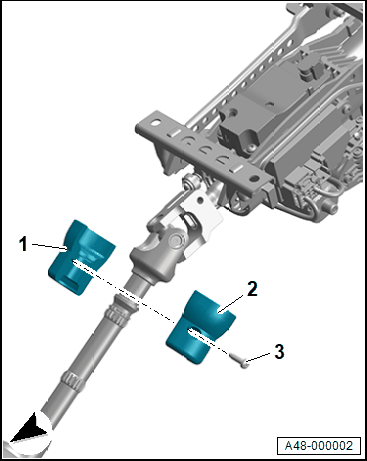

Balance Weight For Steering Intermediate Shaft, Depending on the Version

Fig 2: Balance Weight For Steering Intermediate Shaft, Depending on the Version

Courtesy of AUDI OF AMERICA, LLC

1 -  Balance Weight

2 -  Balance Weight

3 -  Bolt

-  8 Nm
