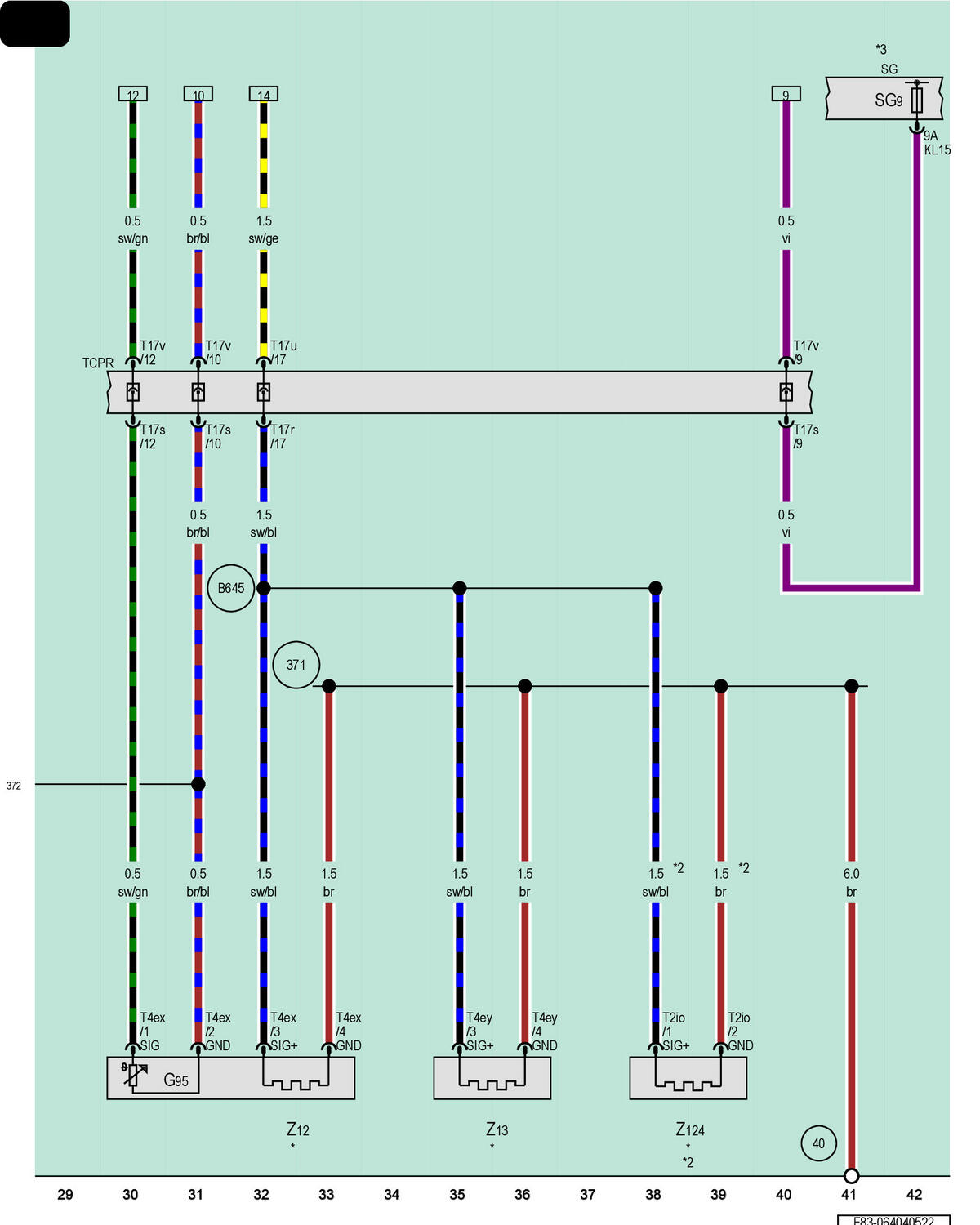

Right Rear Bench Seat Heating Element, Right Rear Backrest Heating Element, Seat Bolster Heating For Right Rear Seat

Courtesy of AUDI OF AMERICA, LLC

G95

Right Rear Heated Seat Temperature Sensor

SG

Fuse Panel G

SG9

Fuse 9 on Fuse Panel G

T2io

2-Pin Connector, Black

T4ex

4-Pin Connector, Black

T4ey

4-Pin Connector, Black

T17r

17-Pin Connector, Brown

T17s

17-Pin Connector, Black

T17u

17-Pin Connector, Brown

T17v

17-Pin Connector, Black

TCPR

Coupling Point on Instrument Panel, Right

Z12

Right Rear Bench Seat Heating Element

Z13

Right Rear Backrest Heating Element

Z124

Seat Bolster Heating for Right Rear Seat

40

Ground Connection Under Right Rear Bench Seat

371

Ground Connection 6 (in Main Wiring Harness)

372

Ground Connection 7 (in Main Wiring Harness)

B645

Heated Seat Connection 2 (in Main Wiring Harness)

*

Pre-Wired Component

*2

Through March 2021

*3

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
