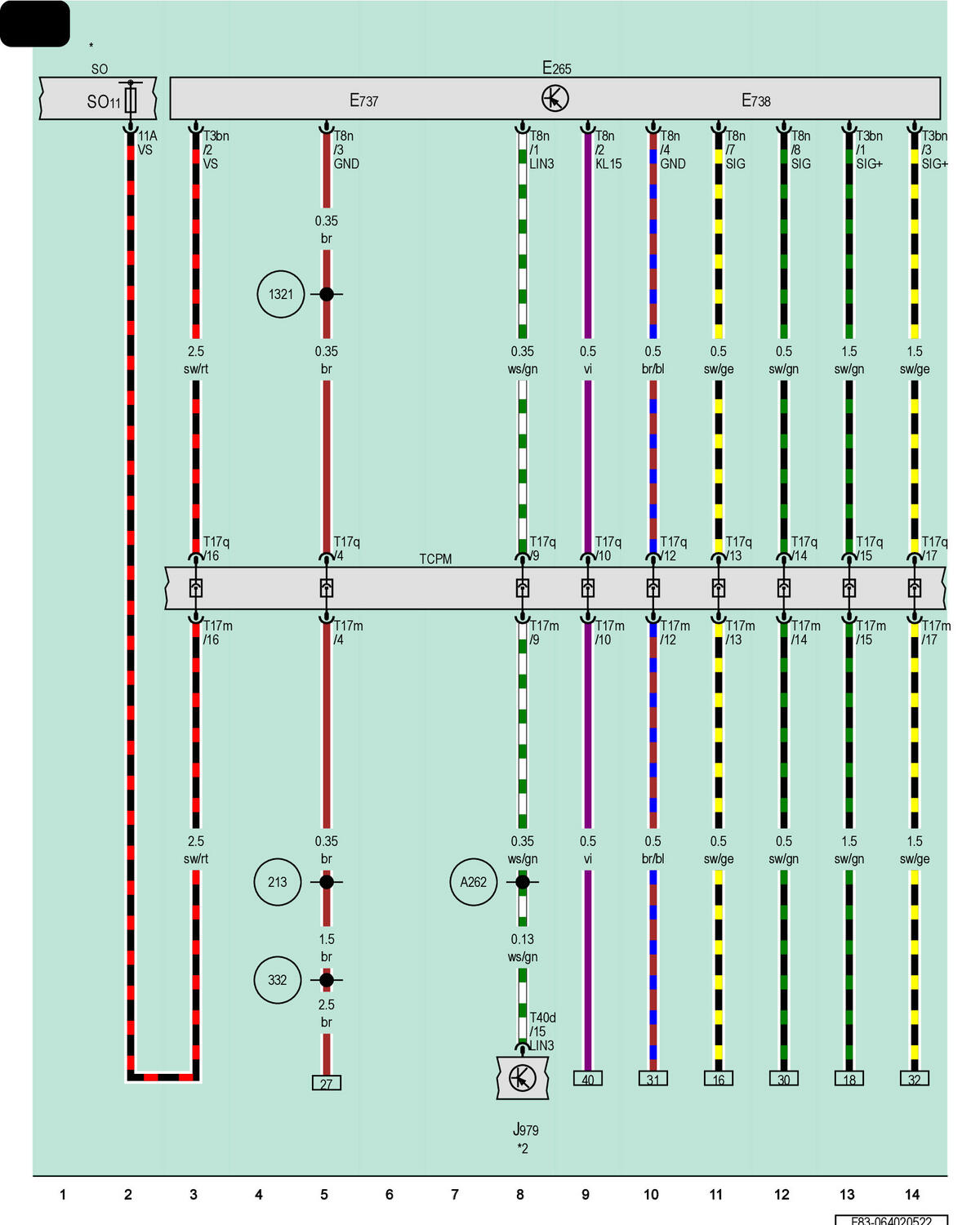

Rear A/C Display Control Head, Left Rear Seat Heating Button, Right Rear Seat Heating Button

Courtesy of AUDI OF AMERICA, LLC

E265

Rear A/C Display Control Head

E737

Left Rear Seat Heating Button

E738

Right Rear Seat Heating Button

J979

Heating and Air Conditioning Control Module

SO

Fuse Panel O

SO11

Fuse 11 on Fuse Panel O

T3bn

3-Pin Connector, Black

T8n

8-Pin Connector, Black

T17m

17-Pin Connector, Blue

T17q

17-Pin Connector, Blue

T40d

40-Pin Connector, Black

TCPM

Coupling Point on Instrument Panel, Center

213

Ground Connection (in Instrument Panel Wiring Harness)

332

Ground Connection 4 (in Instrument Panel Wiring Harness)

1321

Ground Connection 2 (in Center Console Wiring Harness)

A262

LIN Bus Connection 3 (in Instrument Panel Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

Refer to Applicable A/C System Wiring Diagram
