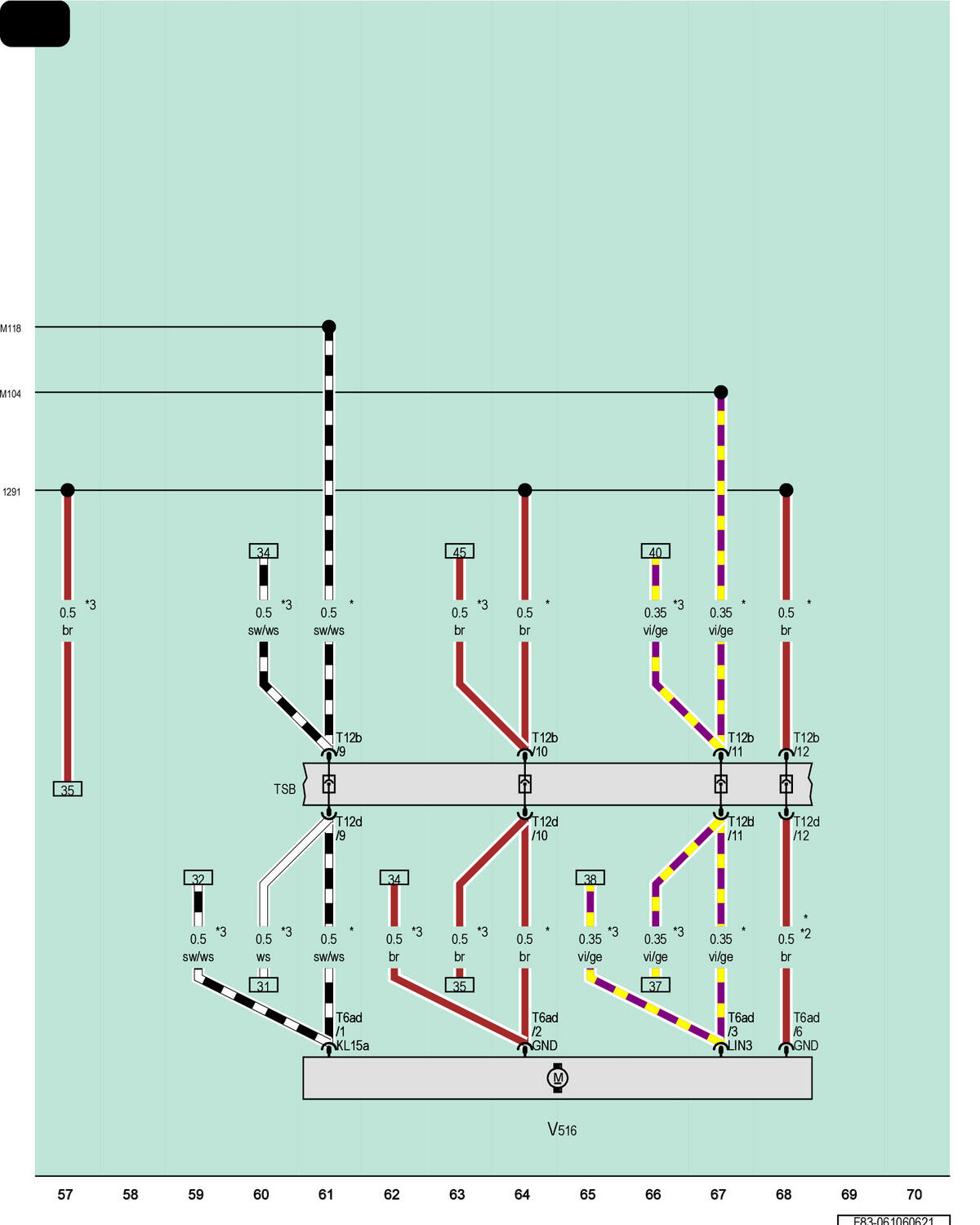

Right Front Seat Backrest Fan 1

Courtesy of AUDI

T6ad

6-Pin Connector, Black

T12b

12-Pin Connector, Brown

T12d

12-Pin Connector, Brown

TSB

Front Passenger Seat Backrest Coupling Point

V516

Right Front Seat Backrest Fan 1

1291

Ground Connection 1 (in Right Front Seat Wiring Harness)

M104

LIN Bus Connection 1 (in Right Front Seat Wiring Harness)

M118

Connection 1 (15) (in Right Front Seat Wiring Harness)

*

For LHD Vehicles

*2

Coding Wire

*3

For RHD Vehicles
