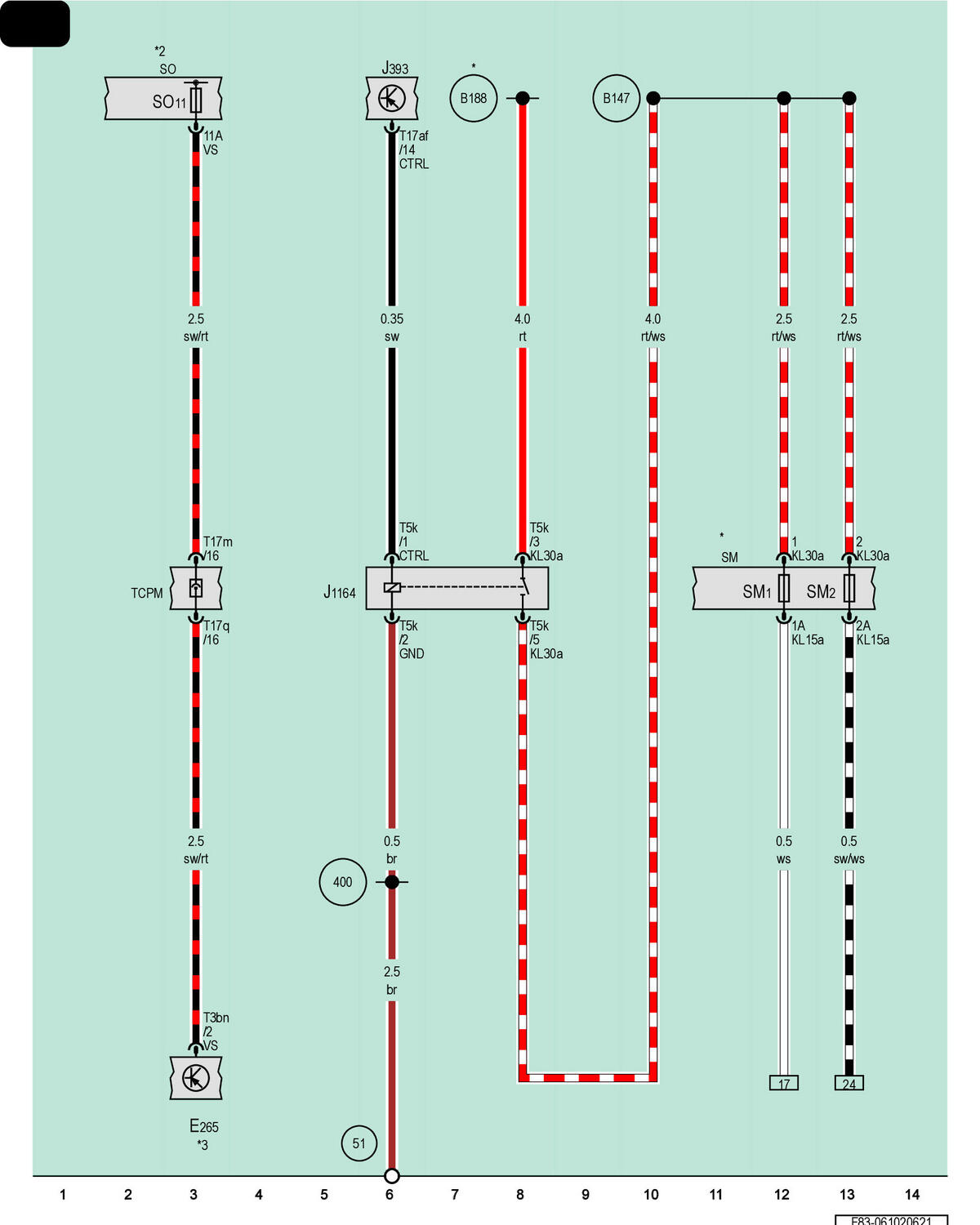

Rear A/C Display Control Head, Remote Start A/C Relay

Courtesy of AUDI

E265

Rear A/C Display Control Head

J393

Comfort System Central Control Module

J1164

Remote Start A/C Relay

SM

Fuse Panel M

SM1

Fuse 1 on Fuse Panel M

SM2

Fuse 2 on Fuse Panel M

SO

Fuse Panel O

SO11

Fuse 11 on Fuse Panel O

T3bn

3-Pin Connector, Black

T5k

5-Pin Connector

T17af

17-Pin Connector, Black

T17m

17-Pin Connector, Blue

T17q

17-Pin Connector, Blue

TCPM

Coupling Point on Instrument Panel, Center

51

Ground Connection in Luggage Compartment, Right

400

Ground Connection 35 (in Main Wiring Harness)

B147

Positive Connection 2 (87) (in Interior Wiring Harness)

B188

Positive Connection 5 (30) (in Interior Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Luggage Compartment

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*3

Refer to the Applicable Wiring Diagram for Rear Heated Seats
