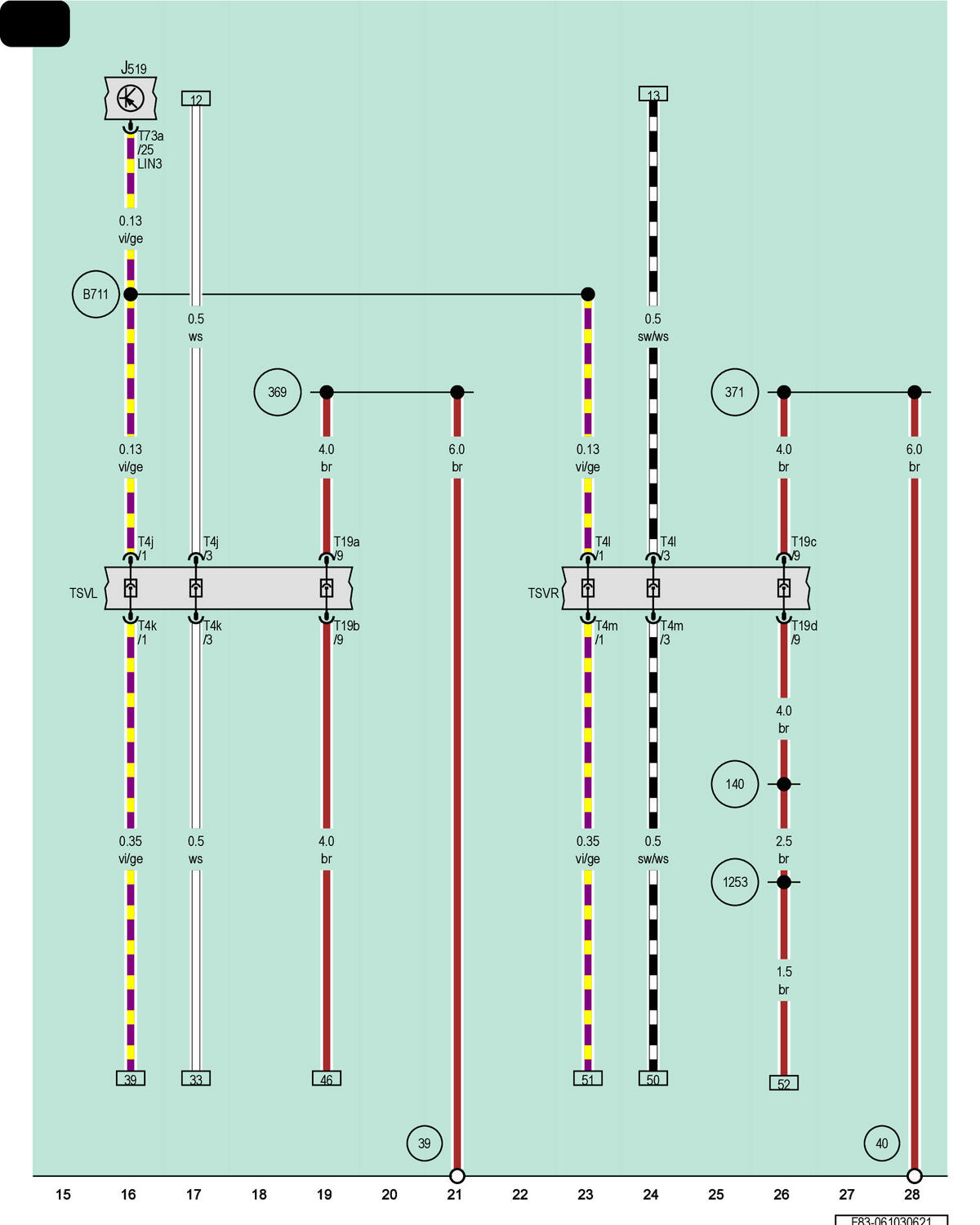

Left Front Seat Coupling Station, Right Front Seat Coupling Station
J519
Vehicle Electrical System Control Module
T4j
4-Pin Connector, Black
T4k
4-Pin Connector
T4l
4-Pin Connector, Black
T4m
4-Pin Connector
T19a
19-Pin Connector, Black
T19b
19-Pin Connector, Black
T19c
19-Pin Connector, Black
T19d
19-Pin Connector, Black
T73a
73-Pin Connector, Black
TSVL
Left Front Seat Coupling Station
TSVR
Right Front Seat Coupling Station
39
Ground Connection Under Left Rear Bench Seat
40
Ground Connection Under Right Rear Bench Seat
140
Ground Connection 2 (in Seat Adjustment Wiring Harness)
369
Ground Connection 4 (in Main Wiring Harness)
371
Ground Connection 6 (in Main Wiring Harness)
1253
Ground Connection 6 (in Seat Adjustment Wiring Harness)
B711
LIN Bus Connection 6 (in Main Wiring Harness)
