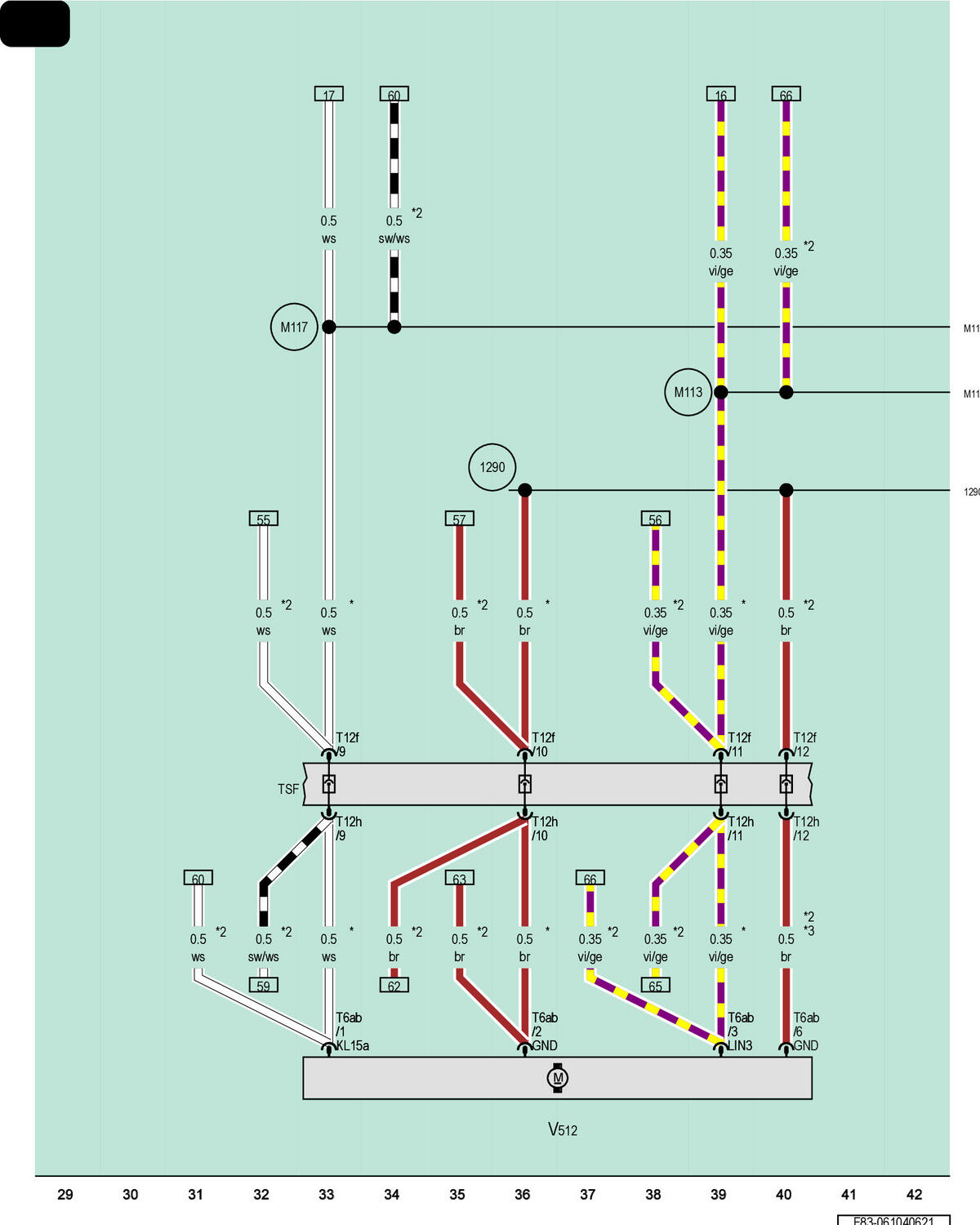

Left Front Seat Backrest Fan 1

Courtesy of AUDI

T6ab

6-Pin Connector, Black

T12f

12-Pin Connector, Brown

T12h

12-Pin Connector, Brown

TSF

Driver Seat Backrest Coupling Point

V512

Left Front Seat Backrest Fan 1

1290

Ground Connection 1 (in Left Front Seat Wiring Harness)

M113

LIN Bus Connection 2 (in Left Front Seat Wiring Harness)

M117

Connection 1 (15) (in Left Front Wiring Harness)

For LHD Vehicles

For RHD Vehicles

Coding Wire
