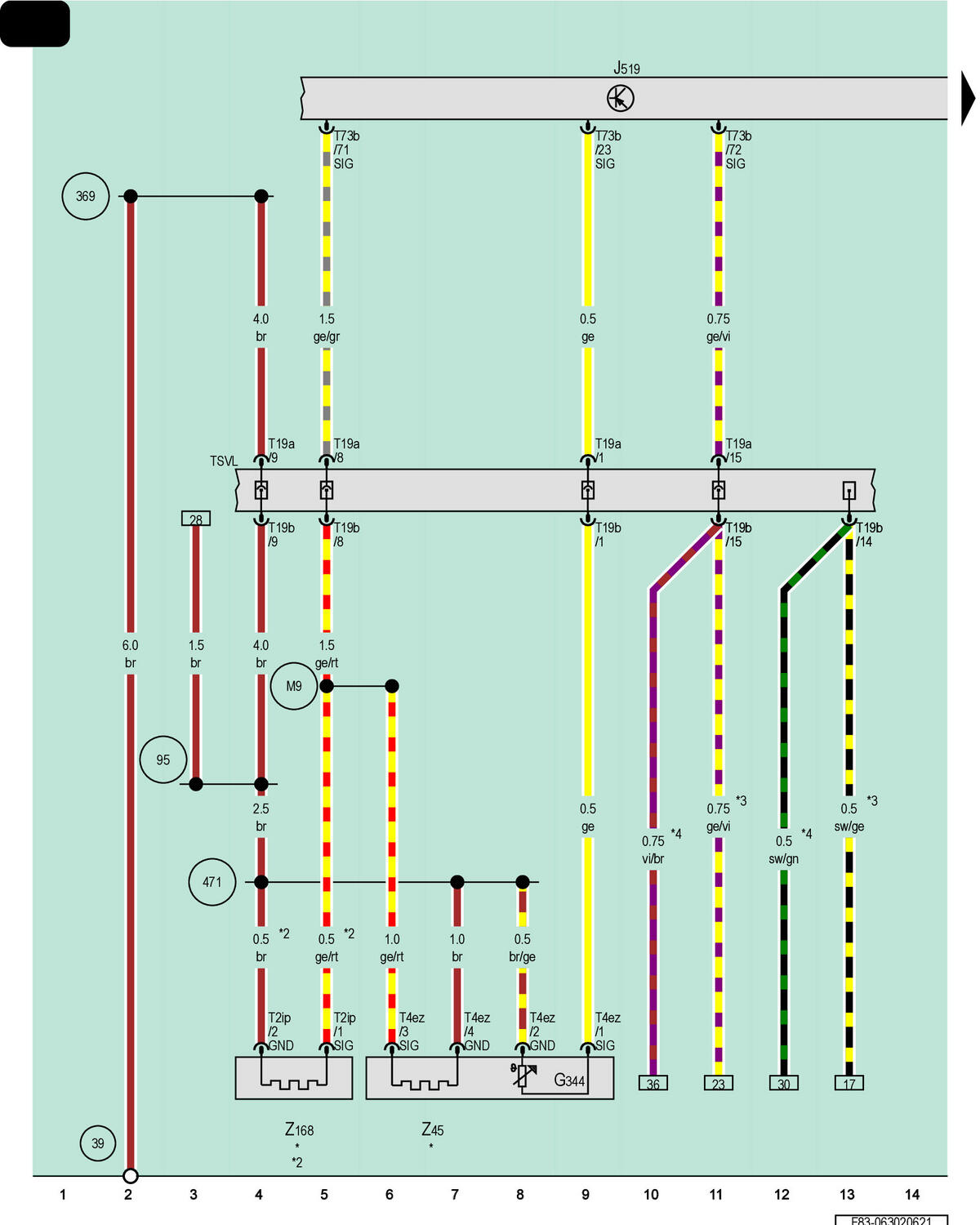

Vehicle Electrical System Control Module, Left Front Seat Heating Element, Left Front Seat Extension Heating Element
G344
Left Front Seat Temperature Sensor
J519
Vehicle Electrical System Control Module
T2ip
2-Pin Connector, Black
T4ez
4-Pin Connector, Black
T19a
19-Pin Connector, Black
T19b
19-Pin Connector, Black
T73b
73-Pin Connector, Black
TSVL
Left Front Seat Coupling Station
Z45
Left Front Seat Heating Element
Z168
Left Front Seat Extension Heating Element
39
Ground Connection Under Left Rear Bench Seat
95
Ground Connection 1 (in Seat Adjustment Wiring Harness)
369
Ground Connection 4 (in Main Wiring Harness)
471
Ground Connection 5 (in Seat Adjustment Wiring Harness)
M9
Connection (in Seat Adjustment Wiring Harness)
*
Pre-Wired Component
*2
Optional Equipment
*3
For LHD Vehicles
*4
For RHD Vehicles
