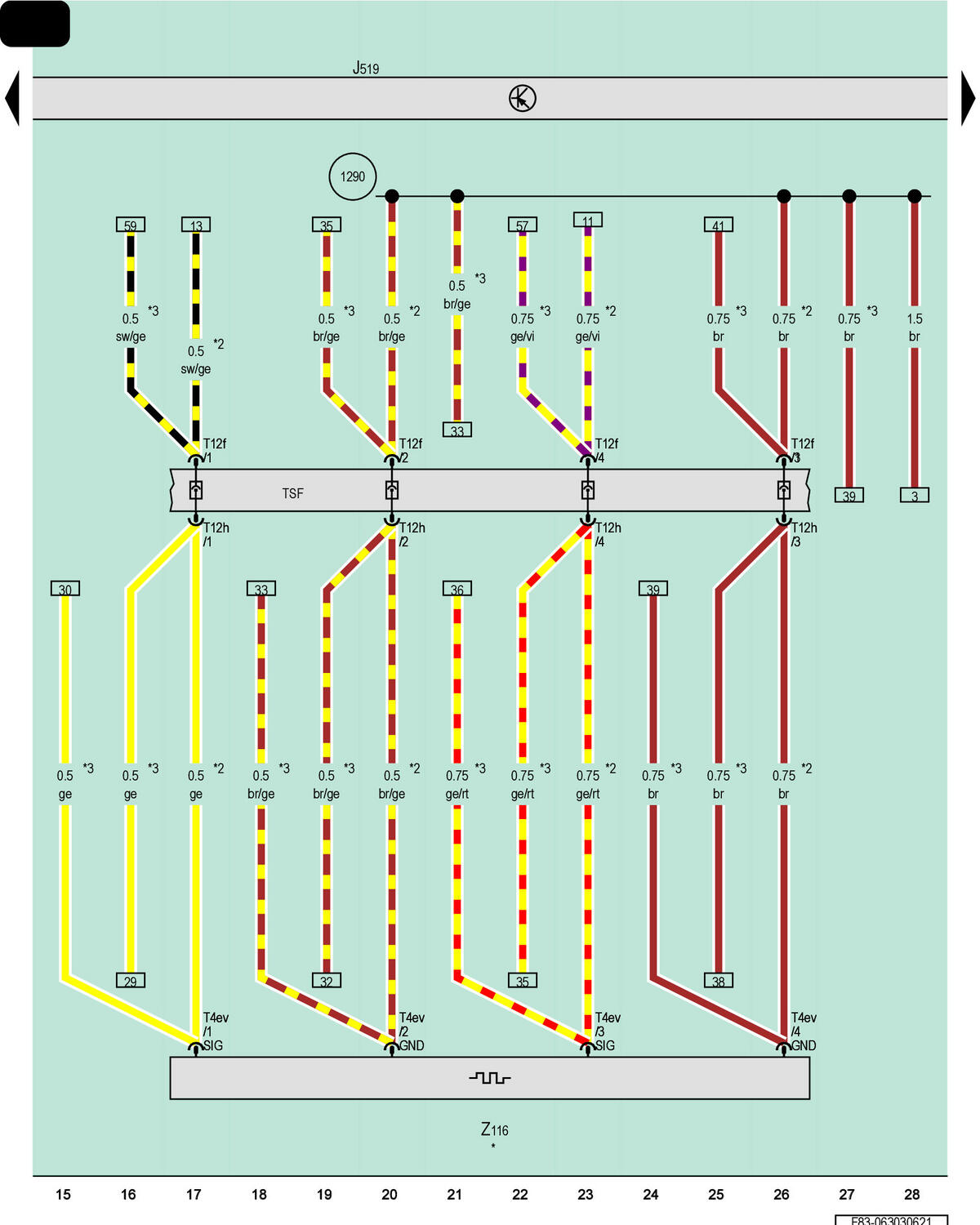

Vehicle Electrical System Control Module, Left Front Seat Heated Backrest

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

T4ev

4-Pin Connector, Black

T12f

12-Pin Connector, Brown

T12h

12-Pin Connector, Brown

TSF

Driver Seat Backrest Coupling Point

Z116

Left Front Seat Heated Backrest

1290

Ground Connection 1 (in Left Front Seat Wiring Harness)

*

Pre-Wired Component

*2

For LHD Vehicles

*3

For RHD Vehicles
