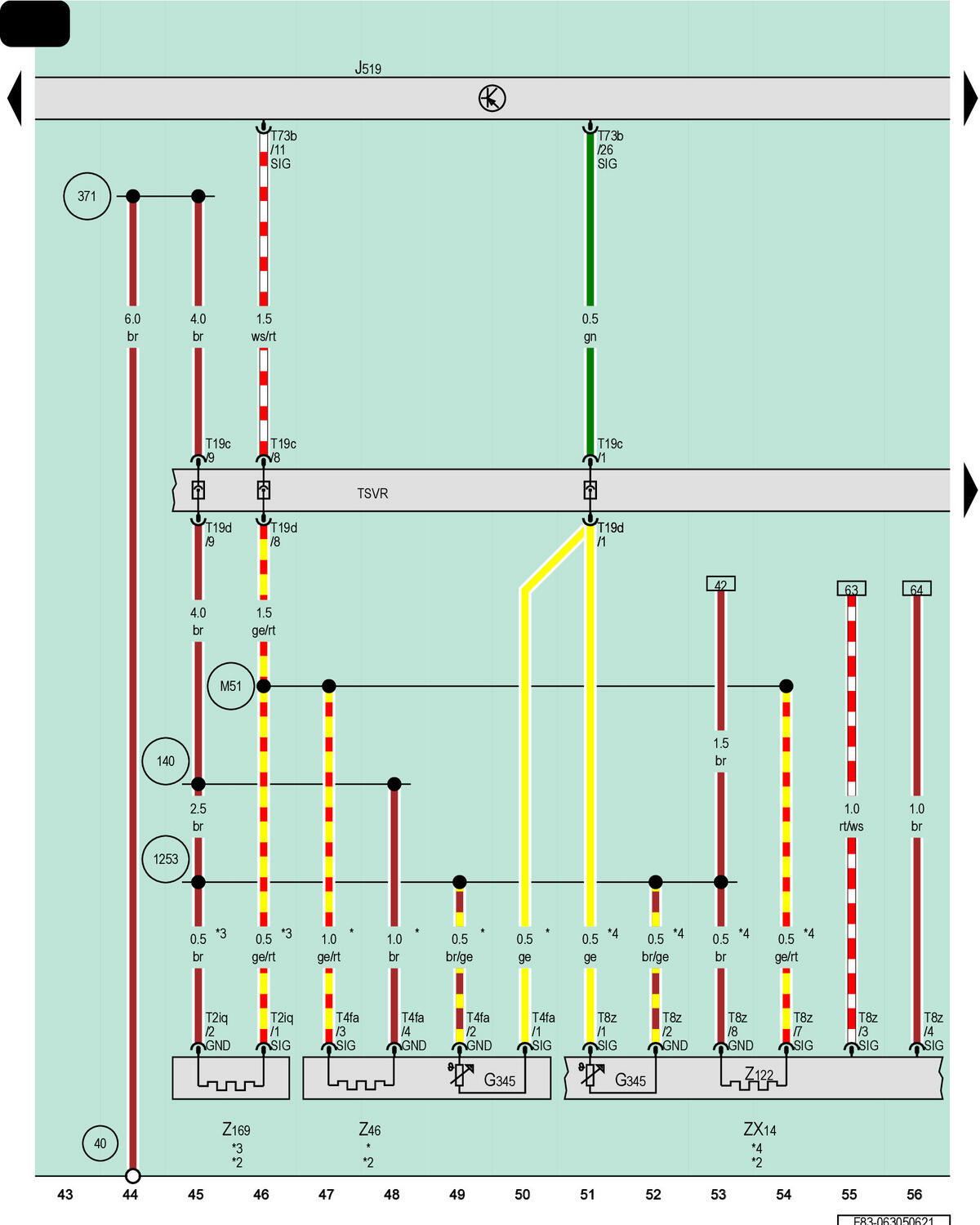

Vehicle Electrical System Control Module, Front Passenger Seat Heating Element With Passenger Occupant Detection System Control Module, Right Front Seat Heating Element, Seat Bolster Heating For Right Front Seat, Right Front Seat Extension Heating Element
G345
Right Front Seat Temperature Sensor
J519
Vehicle Electrical System Control Module
T2iq
2-Pin Connector, Black
T4fa
4-Pin Connector, Black
T8z
8-Pin Connector, Black
T19c
19-Pin Connector, Black
T19d
19-Pin Connector, Black
T73b
73-Pin Connector, Black
TSVR
Right Front Seat Coupling Station
ZX14
Front Passenger Seat Heating Element with Passenger Occupant Detection System Control Module
Z46
Right Front Seat Heating Element
Z122
Seat Bolster Heating for Right Front Seat
Z169
Right Front Seat Extension Heating Element
40
Ground Connection Under Right Rear Bench Seat
140
Ground Connection 2 (in Seat Adjustment Wiring Harness)
371
Ground Connection 6 (in Main Wiring Harness)
1253
Ground Connection 6 (in Seat Adjustment Wiring Harness)
M51
Connection 1 (in Front Passenger Seat Wiring Harness)
*
For Vehicles Without US Equipment
*2
Pre-Wired Component
*3
Optional Equipment
*4
For Vehicles with US Equipment
