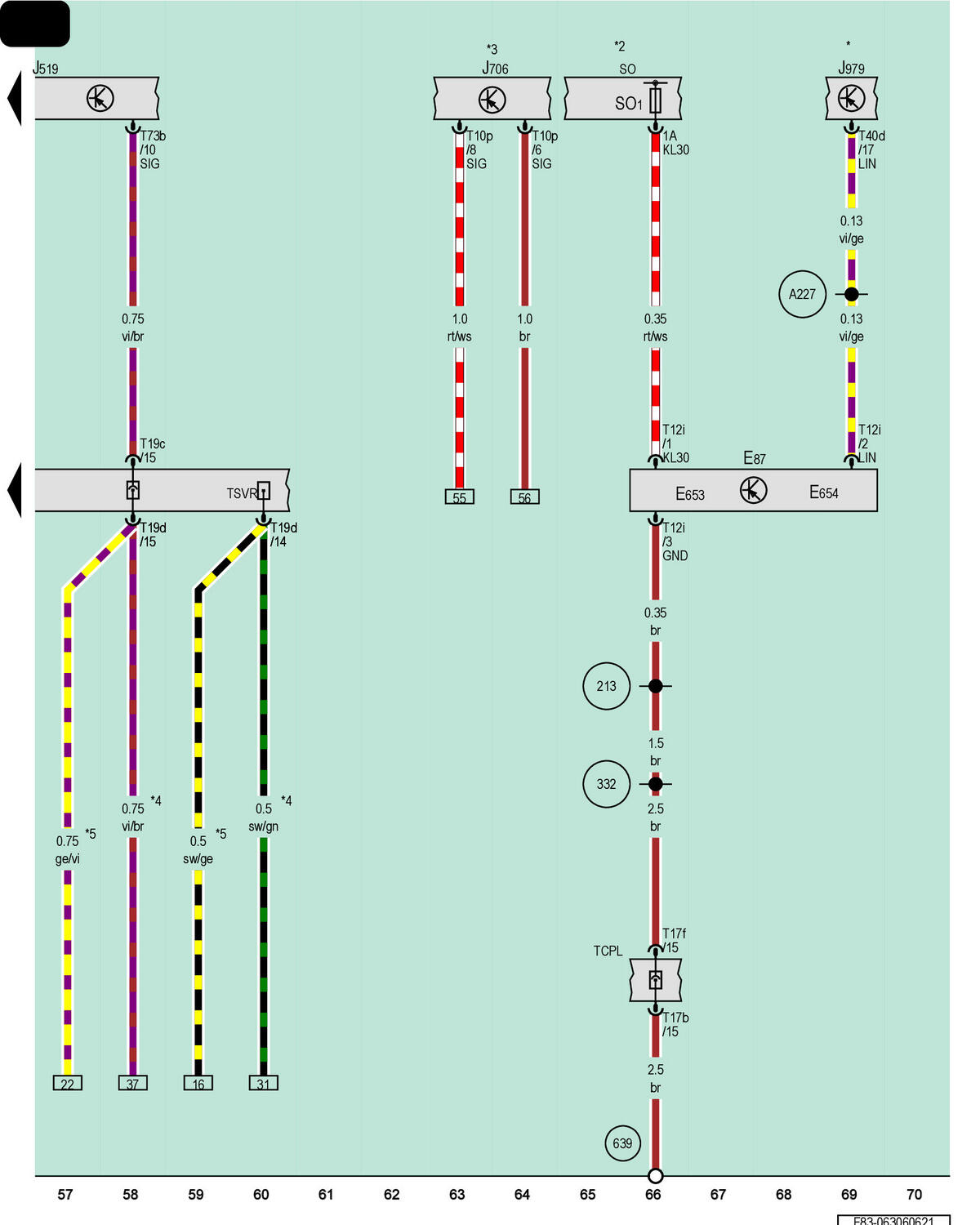

Front A/C Display Control Head, Left Seat Heating Button, Right Seat Heating Button, Vehicle Electrical System Control Module, Passenger Occupant Detection System Control Module, Heating And Air Conditioning Control Module, Fuse Panel O
E87
Front A/C Display Control Head
E653
Left Seat Heating Button
E654
Right Seat Heating Button
J519
Vehicle Electrical System Control Module
J706
Passenger Occupant Detection System Control Module
J979
Heating and Air Conditioning Control Module
SO
Fuse Panel O
SO1
Fuse 1 on Fuse Panel O
T10p
10-Pin Connector, Black
T12i
12-Pin Connector, Black
T17b
17-Pin Connector, Brown
T17f
17-Pin Connector, Brown
T19c
19-Pin Connector, Black
T19d
19-Pin Connector, Black
T40d
40-Pin Connector, Black
T73b
73-Pin Connector, Black
TCPL
Coupling Point on Instrument Panel, Left
TSVR
Right Front Seat Coupling Station
213
Ground Connection (in Instrument Panel Wiring Harness)
332
Ground Connection 4 (in Instrument Panel Wiring Harness)
639
Ground Connection on Left A-Pillar
A227
LIN Bus Connection 2 (in Instrument Panel Wiring Harness)
*
Refer to Applicable A/C System Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
Refer to Applicable Airbag Wiring Diagram
*4
For LHD Vehicles
*5
For RHD Vehicles
