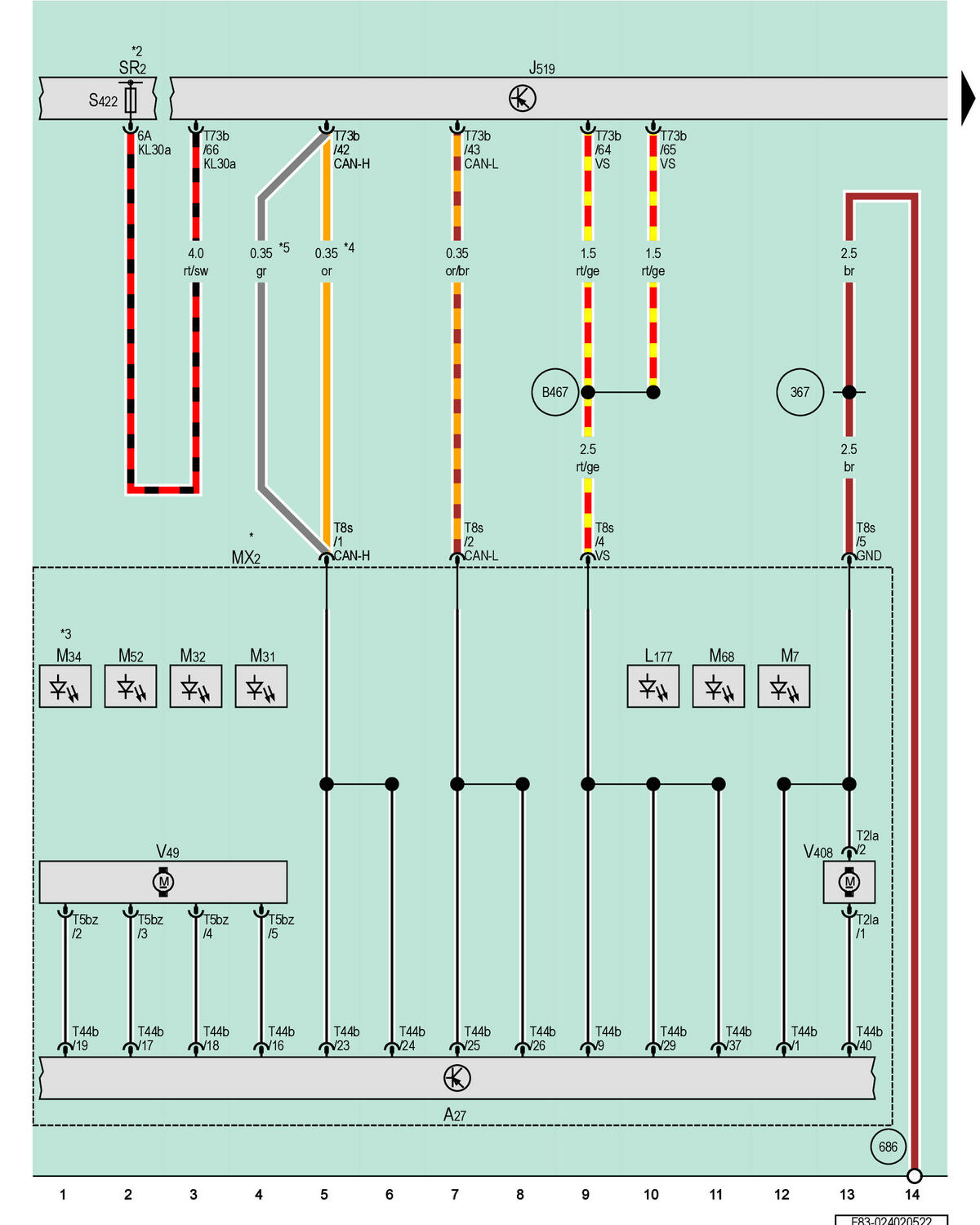

Right Led Headlamp Power Output Module 1, Vehicle Electrical System Control Module, Right Front Headlamp, Right Headlamp Range Control Adjustment Motor, Right Headlamp Fan
A27
Right LED Headlamp Power Output Module 1
J519
Vehicle Electrical System Control Module
L177
Right Daytime Running Lamp and Position Lamp LED Module
MX2
Right Front Headlamp
M7
Right Front Turn Signal Bulb
M31
Right Low Beam Headlamp Bulb
M32
Right High Beam Headlamp Bulb
M34
Right Front Side Marker Lamp Bulb
M52
Right Stationary Cornering Lamp
M68
Right Auxiliary High Beam Bulb
SR2
Relay and Fuse Panel 2
S422
Right Headlamp Fuse
T2la
2-Pin Connector
T5bz
5-Pin Connector
T8am
8-Pin Connector
T8s
8-Pin Connector, Black
T44b
44-Pin Connector
T73b
73-Pin Connector, Black
V49
Right Headlamp Range Control Adjustment Motor
V408
Right Headlamp Fan
367
Ground Connection 2 (in Main Wiring Harness)
686
Ground Connection 2 on Right Front Longitudinal Member
B467
Connection 3 (in Main Wiring Harness)
*
Internal Wiring only Partially Shown
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
For Vehicles with US Equipment
*4
Omitted as a Running Change
*5
Running Change
