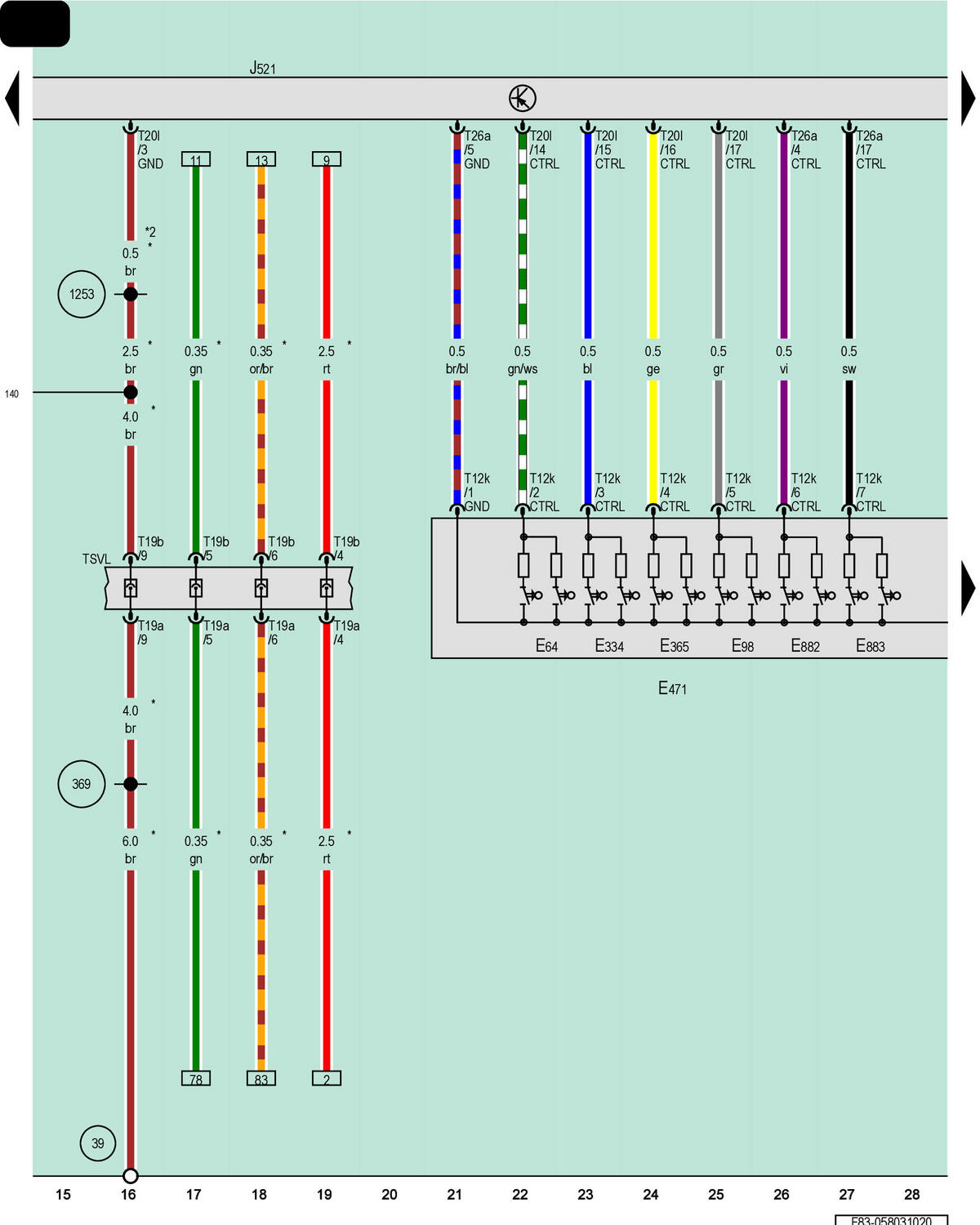

Front Passenger Seat Adjustment Control Head, Front Passenger Memory Seat Control Module

Courtesy of AUDI OF AMERICA, LLC

E64

Front Passenger Seat Forward/Back Adjustment Switch

E98

Front Passenger Backrest Adjustment Switch

E334

Front Passenger Seat Angle Adjustment Button

E365

Front Passenger Seat Height Adjustment Switch

E471

Front Passenger Seat Adjustment Control Head

E882

Front Passenger Lumbar Support Height Adjustment Button

E883

Front Passenger Lumbar Support Forward/Back Adjustment Button

J521

Front Passenger Memory Seat Control Module

T12k

12-Pin Connector, Black

T19a

19-Pin Connector, Black

T19b

19-Pin Connector, Black

T20l

20-Pin Connector, Black

T26a

26-Pin Connector, White

TSVL

Left Front Seat Coupling Station

Ground Connection Under Left Rear Bench Seat

140

Ground Connection 2 (in Seat Adjustment Wiring Harness)

369

Ground Connection 4 (in Main Wiring Harness)

1253

Ground Connection 6 (in Seat Adjustment Wiring Harness)

For RHD Vehicles

Coding Wire
