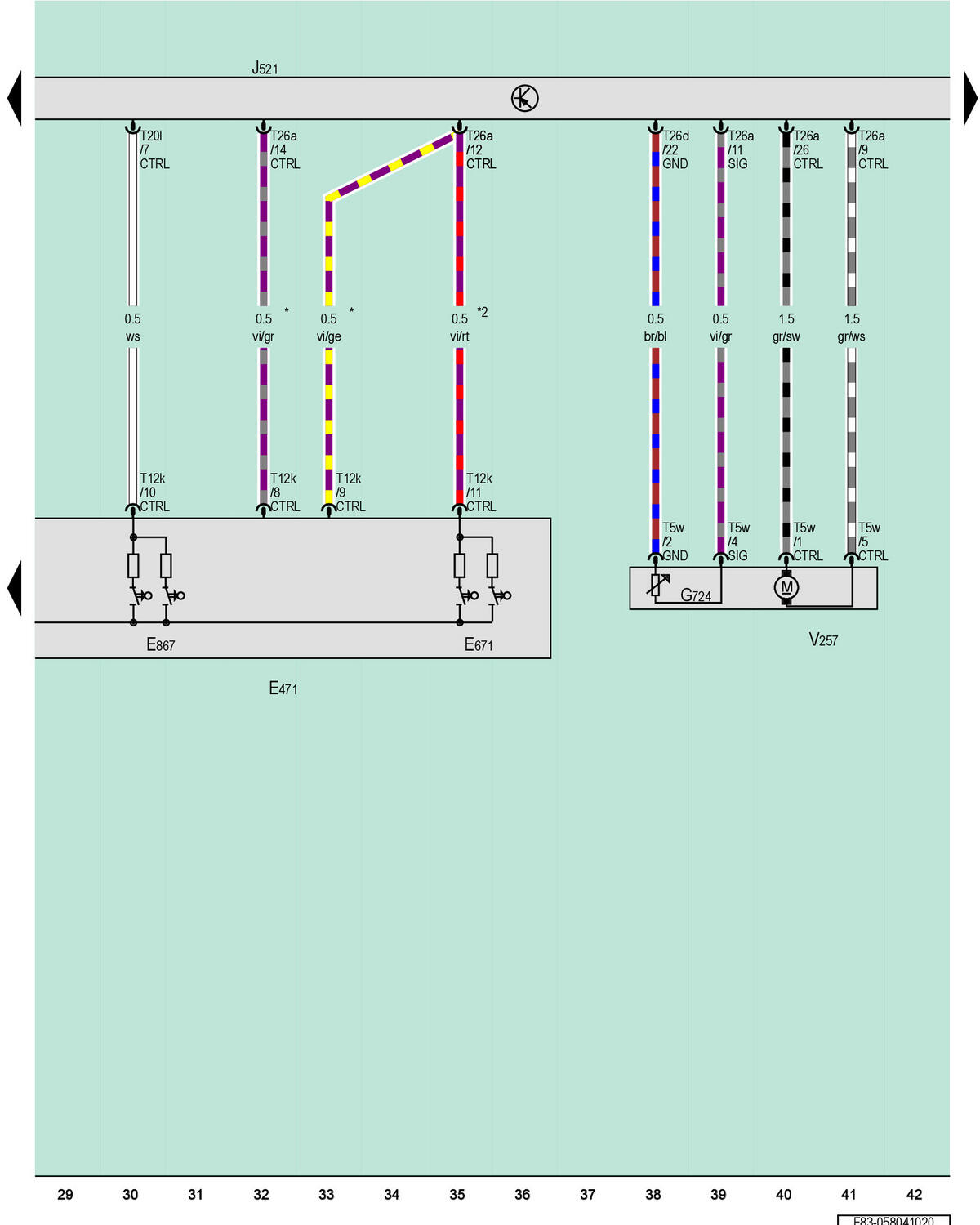

Front Passenger Seat Adjustment Control Head, Front Passenger Memory Seat Control Module, Front Passenger Seat Depth Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

E471

Front Passenger Seat Adjustment Control Head

E671

Front Passenger Massage Function Button

E867

Front Passenger Seat Depth Adjustment Button

G724

Front Passenger Seat Depth Adjustment Sensor

J521

Front Passenger Memory Seat Control Module

T5w

5-Pin Connector, Black

T12k

12-Pin Connector, Black

T20l

20-Pin Connector, Black

T26a

26-Pin Connector, White

T26d

26-Pin Connector, Blue

V257

Front Passenger Seat Depth Adjustment Motor

For Vehicles with Sport Seats

For Seat Adjustment with Massage Function
