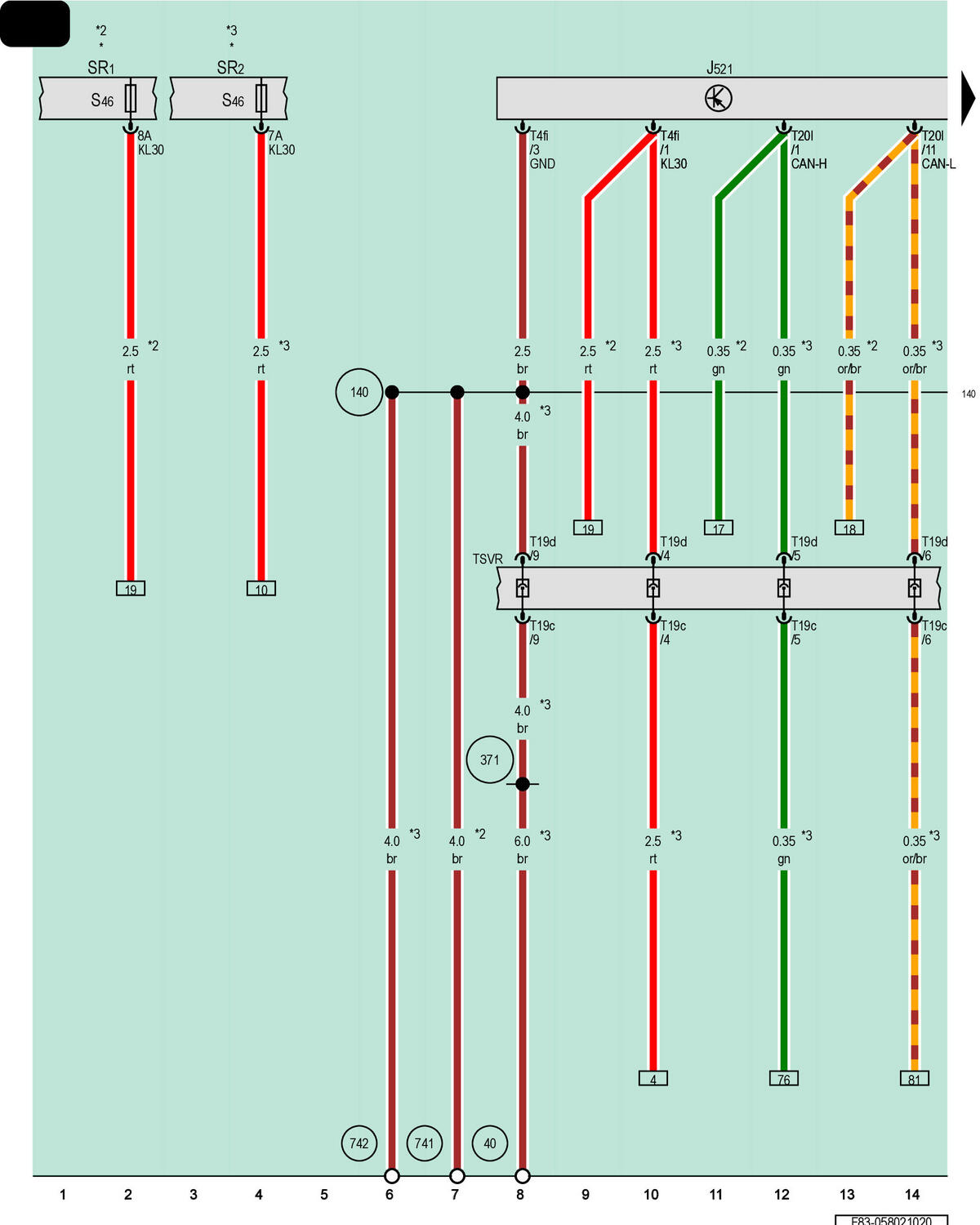

Front Passenger Memory Seat Control Module

Courtesy of AUDI OF AMERICA, LLC

J521

Front Passenger Memory Seat Control Module

SR1

Relay and Fuse Panel 1

SR2

Relay and Fuse Panel 2

S46

Front Passenger Power Seat Adjustment Circuit Breaker 1

T4fi

4-Pin Connector, Black

T19c

19-Pin Connector, Black

T19d

19-Pin Connector, Black

T20l

20-Pin Connector, Black

TSVR

Right Front Seat Coupling Station

40

Ground Connection Under Right Rear Bench Seat

140

Ground Connection 2 (in Seat Adjustment Wiring Harness)

371

Ground Connection 6 (in Main Wiring Harness)

741

Ground Connection Under Left Front Seat

742

Ground Connection Under Right Front Seat

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

For RHD Vehicles

*3

For LHD Vehicles
