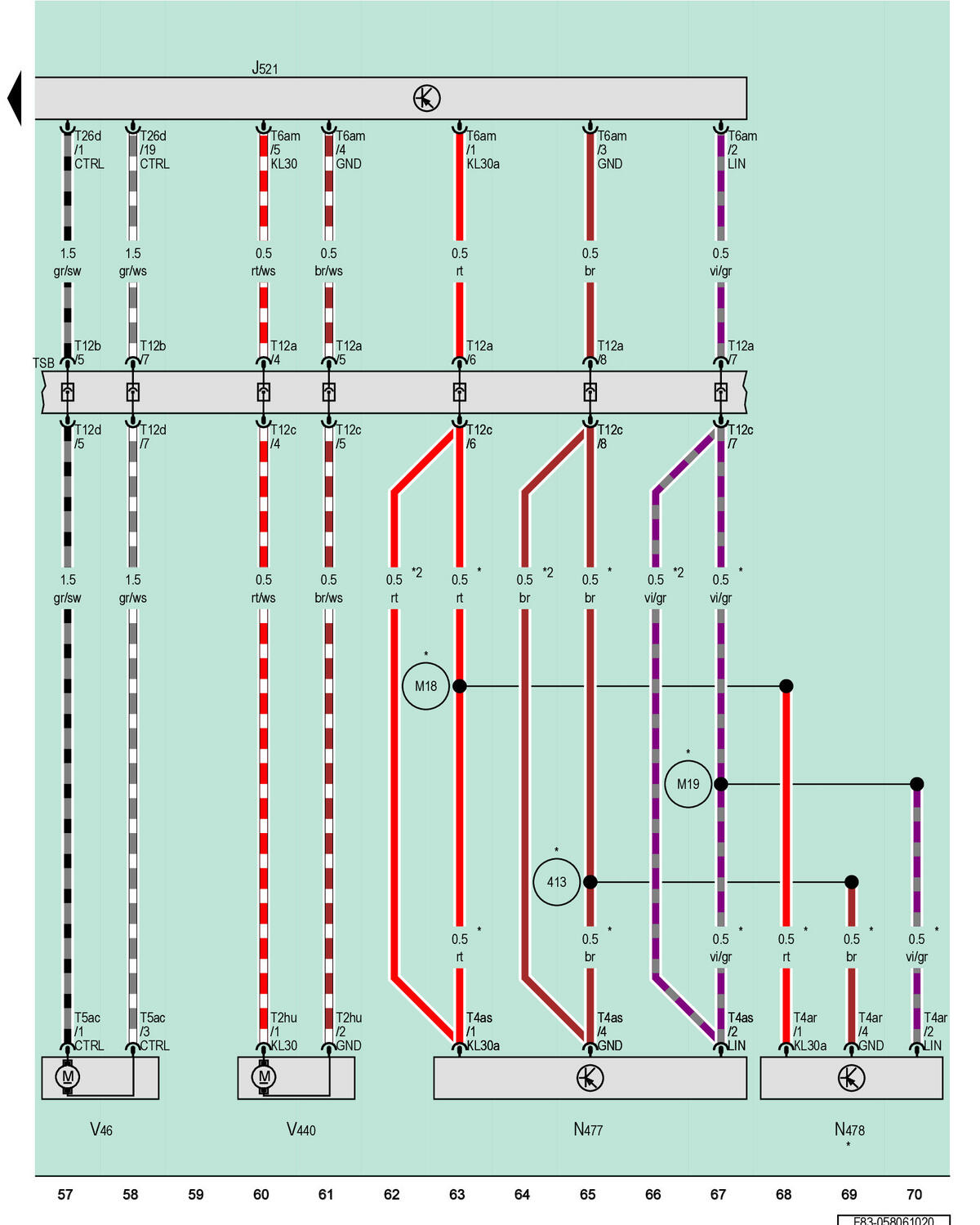

Front Passenger Memory Seat Control Module, Valve Block 1 In Front Passenger Seat, Valve Block 2 In Front Passenger Seat, Front Passenger Backrest Adjustment Motor, Front Passenger Multi-Contour Seat Compressor

Courtesy of AUDI OF AMERICA, LLC

J521

Front Passenger Memory Seat Control Module

N477

Valve Block 1 in Front Passenger Seat

N478

Valve Block 2 in Front Passenger Seat

T2hu

2-Pin Connector, Black

T4ar

4-Pin Connector, Black

T4as

4-Pin Connector, Black

T5ac

5-Pin Connector, Brown

T6am

6-Pin Connector, White

T12a

12-Pin Connector, Black

T12b

12-Pin Connector, Brown

T12c

12-Pin Connector, Black

T12d

12-Pin Connector, Brown

T26d

26-Pin Connector, Blue

TSB

Front Passenger Seat Backrest Coupling Point

V46

Front Passenger Backrest Adjustment Motor

V440

Front Passenger Multi-Contour Seat Compressor

413

Ground Connection 4 (in Seat Adjustment Wiring Harness)

M18

Connection 1 (in Front Passenger Seat Adjustment Wiring Harness)

M19

Connection 2 (in Front Passenger Seat Adjustment Wiring Harness)

For Seat Adjustment with Massage Function

For Seat Adjustment without Massage Function
