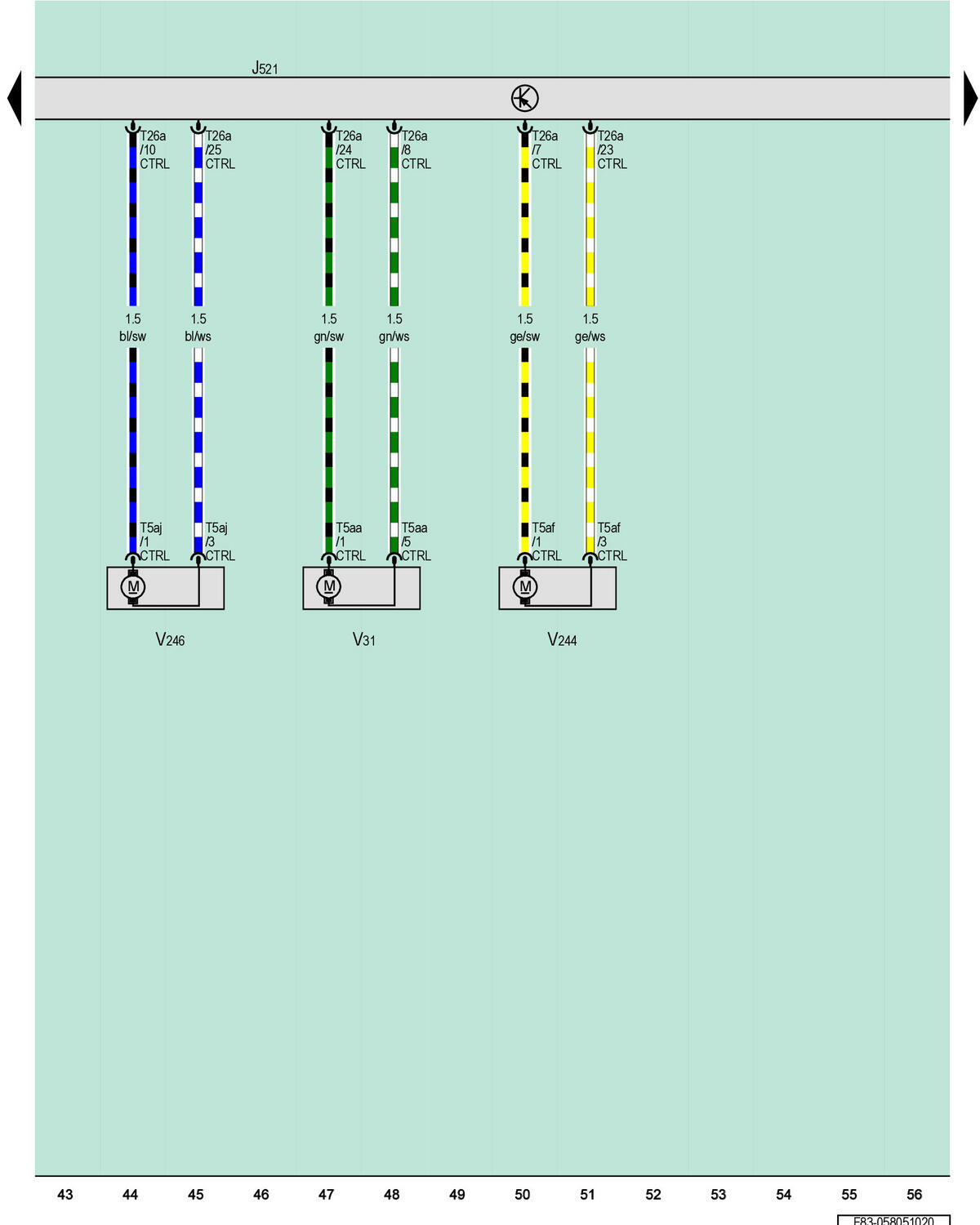

Front Passenger Memory Seat Control Module, Front Passenger Seat Forward/Back Adjustment Motor, Front Passenger Seat Angle Adjustment Motor, Front Passenger Seat Height Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

J521

Front Passenger Memory Seat Control Module

T5aa

5-Pin Connector, Black

T5af

5-Pin Connector, Brown

T5aj

5-Pin Connector, Brown

T26a

26-Pin Connector, White

V31

Front Passenger Seat Forward/Back Adjustment Motor

V244

Front Passenger Seat Angle Adjustment Motor

V246

Front Passenger Seat Height Adjustment Motor
