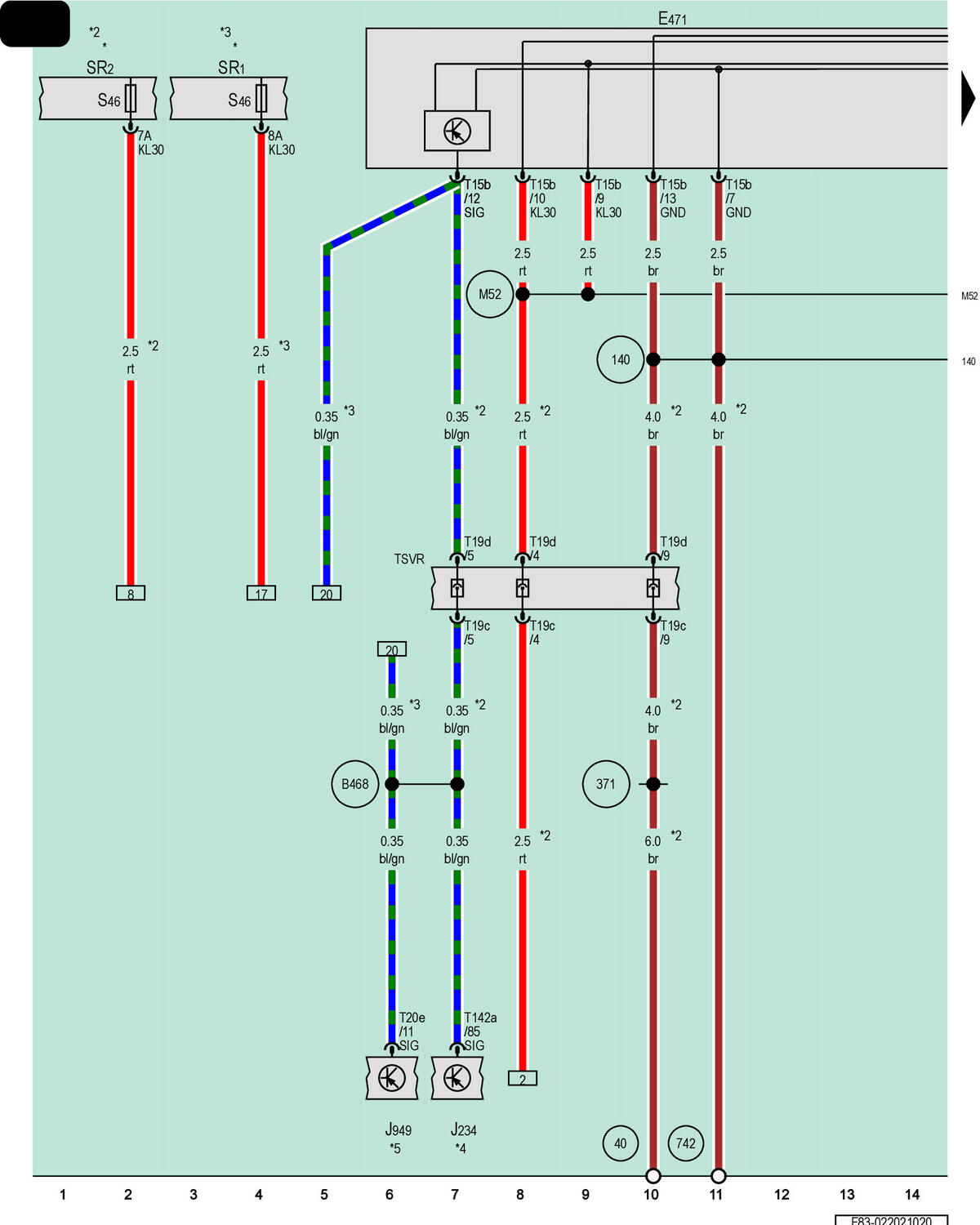

Front Passenger Seat Adjustment Control Head, Relay And Fuse Panel 1, Relay And Fuse Panel 2

Courtesy of AUDI OF AMERICA, LLC

E471

Front Passenger Seat Adjustment Control Head

J234

Airbag Control Module

J949

Control Module for Emergency Call Module and Communication Unit

SR1

Relay and Fuse Panel 1

SR2

Relay and Fuse Panel 2

S46

Front Passenger Power Seat Adjustment Circuit Breaker 1

T15b

15-Pin Connector, Purple

T19c

19-Pin Connector, Black

T19d

19-Pin Connector, Black

T20e

20-Pin Connector, Black

T142a

142-Pin Connector, Yellow

TSVR

Right Front Seat Coupling Station

40

Ground Connection Under Right Rear Bench Seat

140

Ground Connection 2 (in Seat Adjustment Wiring Harness)

371

Ground Connection 6 (in Main Wiring Harness)

742

Ground Connection Under Right Front Seat

B468

Connection 4 (in Main Wiring Harness)

M52

Connection 2 (in Front Passenger Seat Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

For LHD Vehicles

*3

For RHD Vehicles

*4

Refer to Applicable Airbag Wiring Diagram

*5

Refer to Applicable Communication Wiring Diagram
