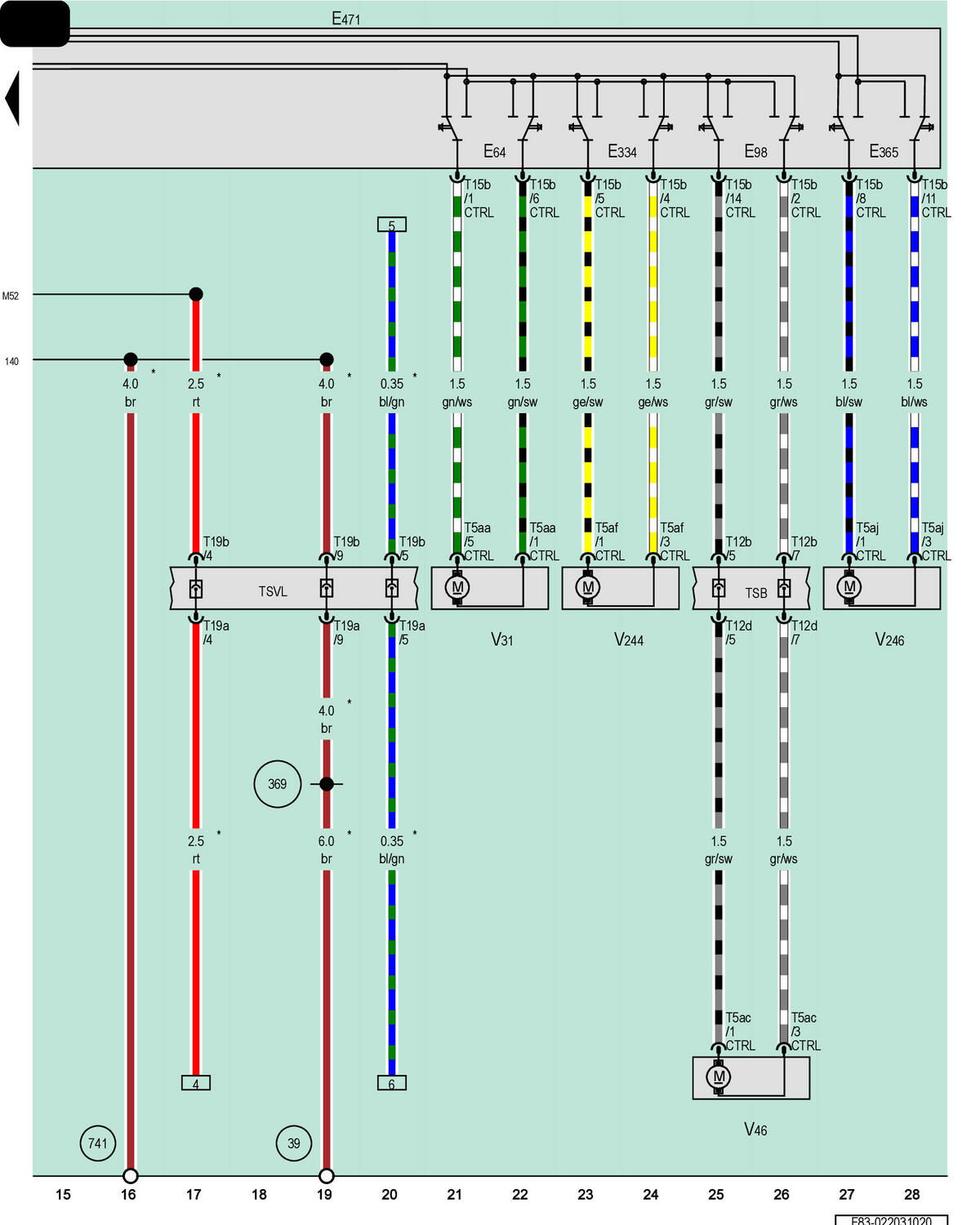

Front Passenger Seat Adjustment Control Head, Front Passenger Seat Forward/Back Adjustment Motor, Front Passenger Backrest Adjustment Motor, Front Passenger Seat Angle Adjustment Motor, Front Passenger Seat Height Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

E64

Front Passenger Seat Forward/Back Adjustment Switch

E98

Front Passenger Backrest Adjustment Switch

E334

Front Passenger Seat Angle Adjustment Button

E365

Front Passenger Seat Height Adjustment Switch

E471

Front Passenger Seat Adjustment Control Head

T5aa

5-Pin Connector, Black

T5ac

5-Pin Connector, Brown

T5af

5-Pin Connector, Brown

T5aj

5-Pin Connector, Brown

T12b

12-Pin Connector, Brown

T12d

12-Pin Connector, Brown

T15b

15-Pin Connector, Purple

T19a

19-Pin Connector, Black

T19b

19-Pin Connector, Black

TSB

Front Passenger Seat Backrest Coupling Point

TSVL

Left Front Seat Coupling Station

V31

Front Passenger Seat Forward/Back Adjustment Motor

V46

Front Passenger Backrest Adjustment Motor

V244

Front Passenger Seat Angle Adjustment Motor

V246

Front Passenger Seat Height Adjustment Motor

Ground Connection Under Left Rear Bench Seat

140

Ground Connection 2 (in Seat Adjustment Wiring Harness)

369

Ground Connection 4 (in Main Wiring Harness)

741

Ground Connection Under Left Front Seat

M52

Connection 2 (in Front Passenger Seat Wiring Harness)

For RHD Vehicles
