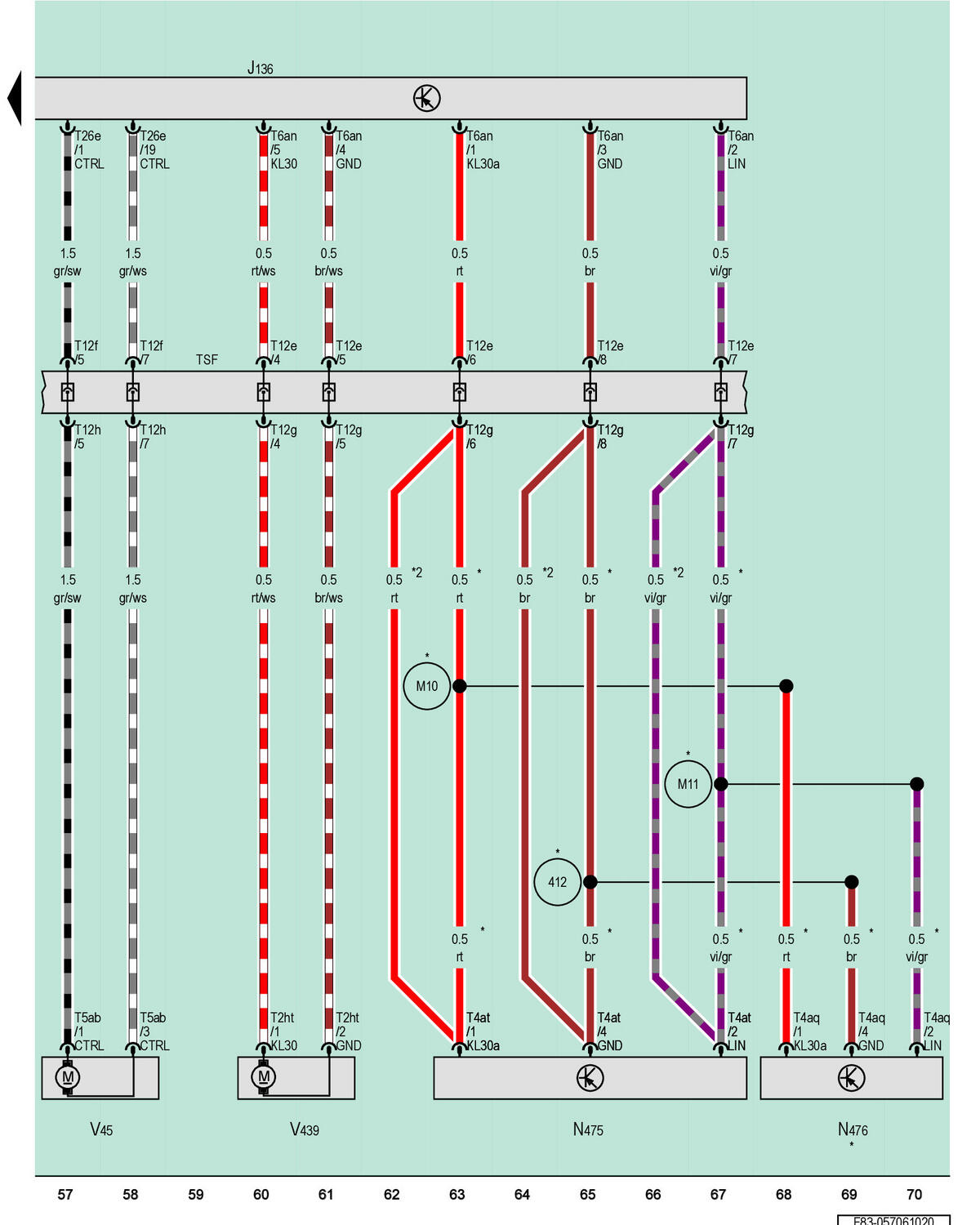

Memory Seat/Steering Column Adjustment Control Module, Valve Block 1 In Driver Seat, Valve Block 2 In Driver Seat, Driver Backrest Adjustment Motor, Driver Multi-Contour Seat Compressor
J136
Memory Seat/Steering Column Adjustment Control Module
N475
Valve Block 1 in Driver Seat
N476
Valve Block 2 in Driver Seat
T2ht
2-Pin Connector, Black
T4aq
4-Pin Connector, Black
T4at
4-Pin Connector, Black
T5ab
5-Pin Connector, Brown
T6an
6-Pin Connector, White
T12e
12-Pin Connector, Black
T12f
12-Pin Connector, Brown
T12g
12-Pin Connector, Black
T12h
12-Pin Connector, Brown
T26e
26-Pin Connector, Blue
TSF
Driver Seat Backrest Coupling Point
V45
Driver Backrest Adjustment Motor
V439
Driver Multi-Contour Seat Compressor
412
Ground Connection 3 (in Seat Adjustment Wiring Harness)
M10
Connection 1 (in Driver Seat Adjustment Wiring Harness)
M11
Connection 2 (in Driver Seat Adjustment Wiring Harness)
*
For Seat Adjustment with Massage Function
*2
For Seat Adjustment without Massage Function
