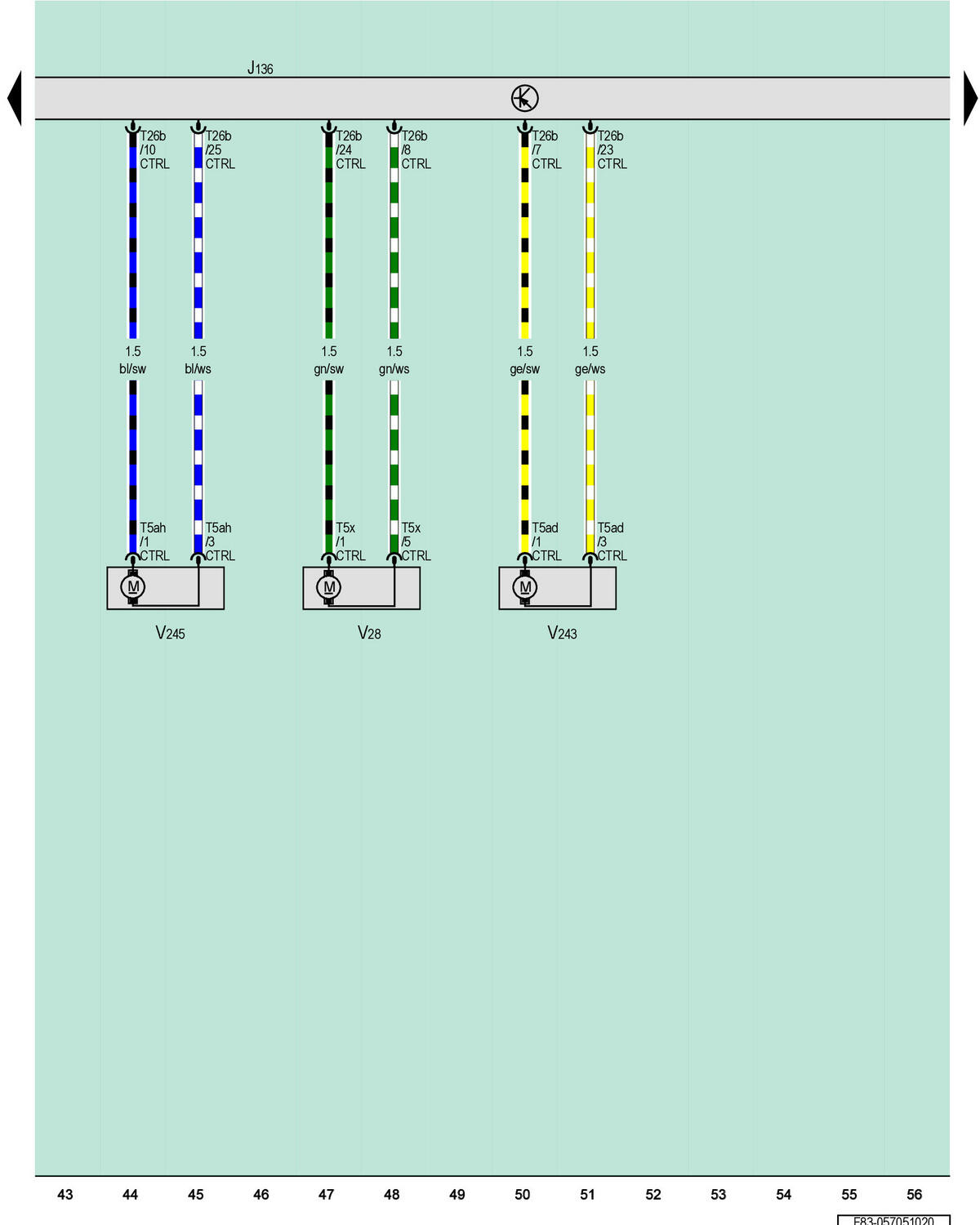

Memory Seat/Steering Column Adjustment Control Module, Driver Seat Forward/Back Adjustment Motor, Driver Seat Angle Adjustment Motor, Driver Seat Height Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

J136

Memory Seat/Steering Column Adjustment Control Module

T5ad

5-Pin Connector, Brown

T5ah

5-Pin Connector, Brown

T5x

5-Pin Connector, Black

T26b

26-Pin Connector, White

V28

Driver Seat Forward/Back Adjustment Motor

V243

Driver Seat Angle Adjustment Motor

V245

Driver Seat Height Adjustment Motor
