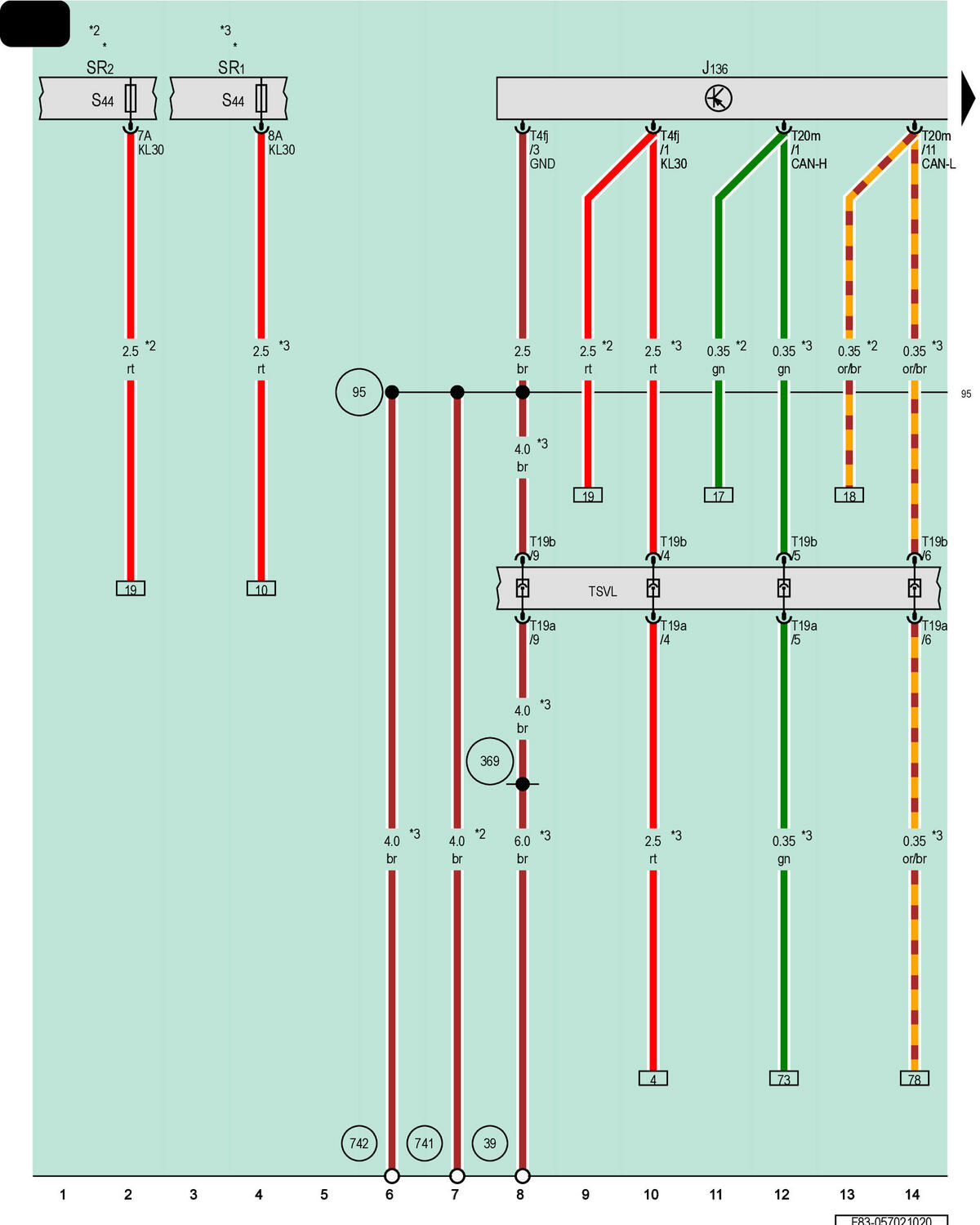

Memory Seat/Steering Column Adjustment Control Module, Driver Power Seat Adjustment Circuit Breaker 1

Courtesy of AUDI OF AMERICA, LLC

J136

Memory Seat/Steering Column Adjustment Control Module

SR1

Relay and Fuse Panel 1

SR2

Relay and Fuse Panel 2

S44

Driver Power Seat Adjustment Circuit Breaker 1

T4fj

4-Pin Connector, Black

T19a

19-Pin Connector, Black

T19b

19-Pin Connector, Black

T20m

20-Pin Connector, Black

TSVL

Left Front Seat Coupling Station

39

Ground Connection Under Left Rear Bench Seat

95

Ground Connection 1 (in Seat Adjustment Wiring Harness)

369

Ground Connection 4 (in Main Wiring Harness)

741

Ground Connection Under Left Front Seat

742

Ground Connection Under Right Front Seat

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

For RHD Vehicles

*3

For LHD Vehicles
