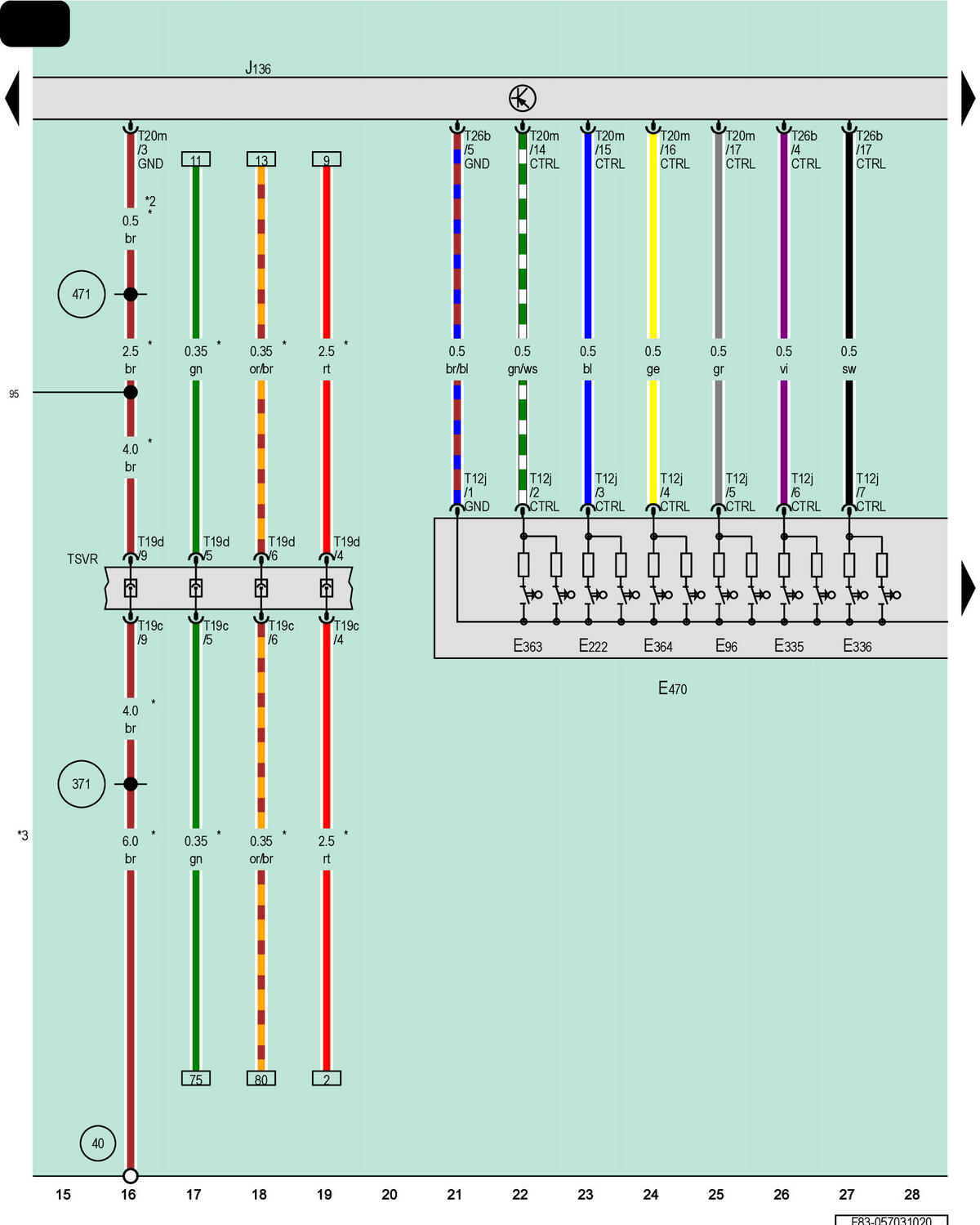

Driver Seat Adjustment Control Head, Memory Seat/Steering Column Adjustment Control Module
E96
Driver Backrest Adjustment Switch
E222
Driver Seat Angle Adjustment Switch
E335
Lumbar Support Height Adjustment Button
E336
Lumbar Support Forward/Back Adjustment Button
E363
Driver Seat Forward/Back Adjustment Switch
E364
Driver Seat Height Adjustment Switch
E470
Driver Seat Adjustment Control Head
J136
Memory Seat/Steering Column Adjustment Control Module
T12j
12-Pin Connector, Black
T19c
19-Pin Connector, Black
T19d
19-Pin Connector, Black
T20m
20-Pin Connector, Black
T26b
26-Pin Connector, White
TSVR
Right Front Seat Coupling Station
40
Ground Connection Under Right Rear Bench Seat
95
Ground Connection 1 (in Seat Adjustment Wiring Harness)
371
Ground Connection 6 (in Main Wiring Harness)
471
Ground Connection 5 (in Seat Adjustment Wiring Harness)
*
For RHD Vehicles
*2
Coding Wire
