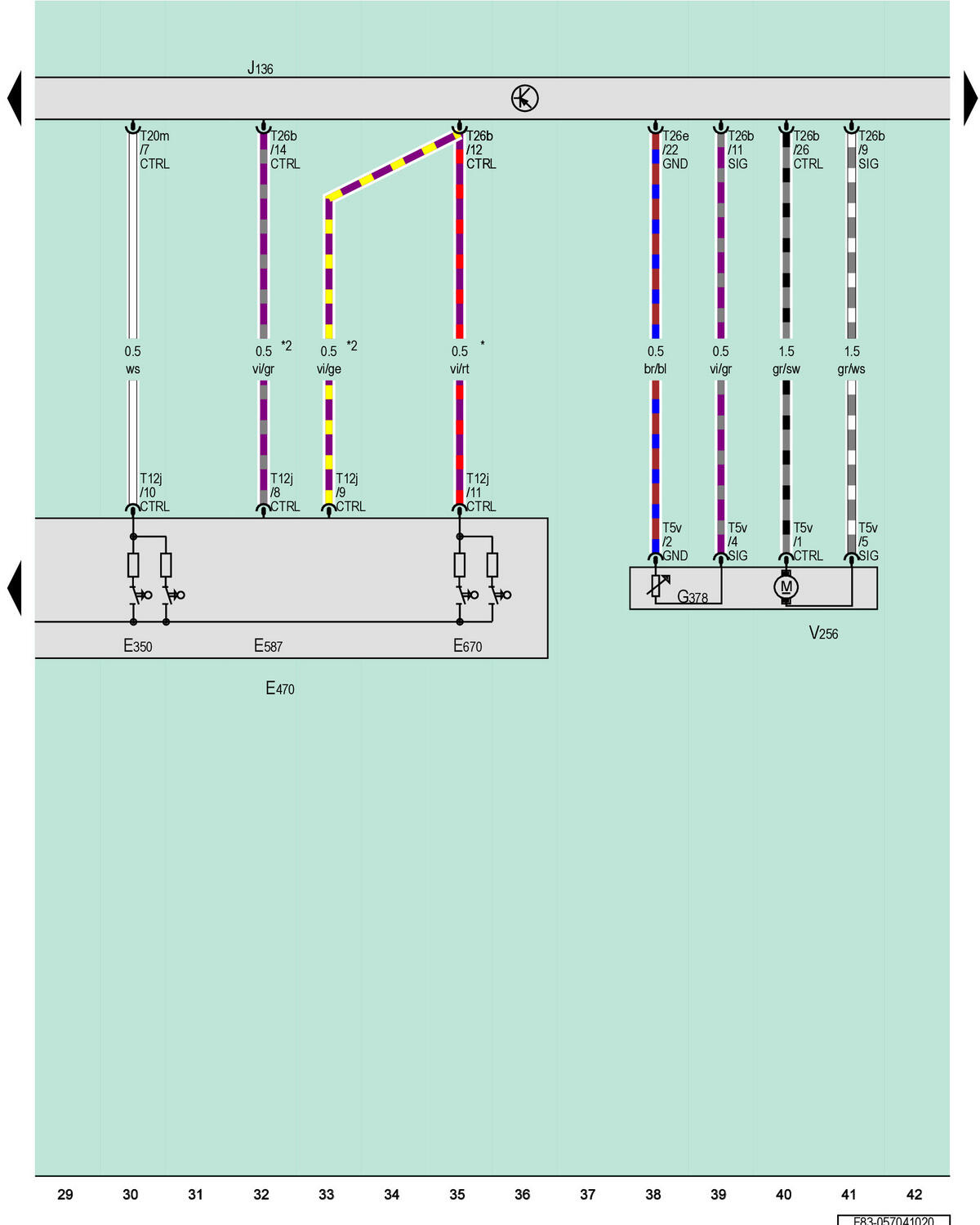

Driver Seat Adjustment Control Head, Memory Seat/Steering Column Adjustment Control Module, Driver Seat Depth Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

E350

Seat Depth Adjustment Button

E470

Driver Seat Adjustment Control Head

E587

Driver Seat Bolster Inflation Adjustment Button

E670

Driver Side Massage Function Button

G378

Seat Depth Adjustment Sensor

J136

Memory Seat/Steering Column Adjustment Control Module

T5v

5-Pin Connector, Black

T12j

12-Pin Connector, Black

T20m

20-Pin Connector, Black

T26b

26-Pin Connector, White

T26e

26-Pin Connector, Blue

V256

Driver Seat Depth Adjustment Motor

*

For Seat Adjustment with Massage Function

*2

For Vehicles with Sport Seats
