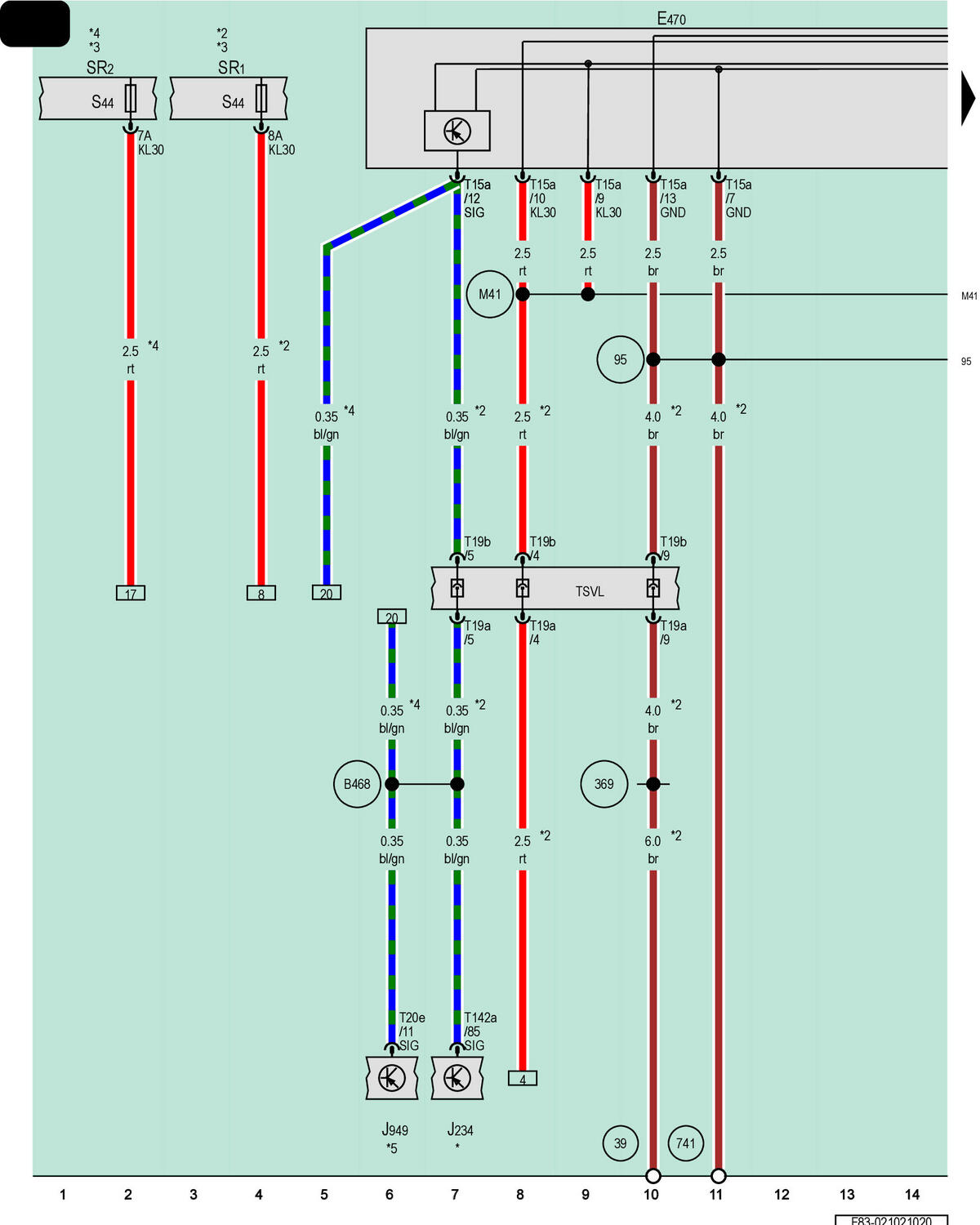

Driver Seat Adjustment Control Head
E470
Driver Seat Adjustment Control Head
J234
Airbag Control Module
J949
Control Module for Emergency Call Module and Communication Unit
SR1
Relay and Fuse Panel 1
SR2
Relay and Fuse Panel 2
S44
Driver Power Seat Adjustment Circuit Breaker 1
T15a
15-Pin Connector, Purple
T19a
19-Pin Connector, Black
T19b
19-Pin Connector, Black
T20e
20-Pin Connector, Black
T142a
142-Pin Connector, Yellow
TSVL
Left Front Seat Coupling Station
39
Ground Connection Under Left Rear Bench Seat
95
Ground Connection 1 (in Seat Adjustment Wiring Harness)
369
Ground Connection 4 (in Main Wiring Harness)
741
Ground Connection Under Left Front Seat
B468
Connection 4 (in Main Wiring Harness)
M41
Connection 1 (in Driver Seat Wiring Harness)
*
Refer to Applicable Airbag Wiring Diagram
*2
For LHD Vehicles
*3
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*4
For RHD Vehicles
*5
Refer to Applicable Communication Wiring Diagram
