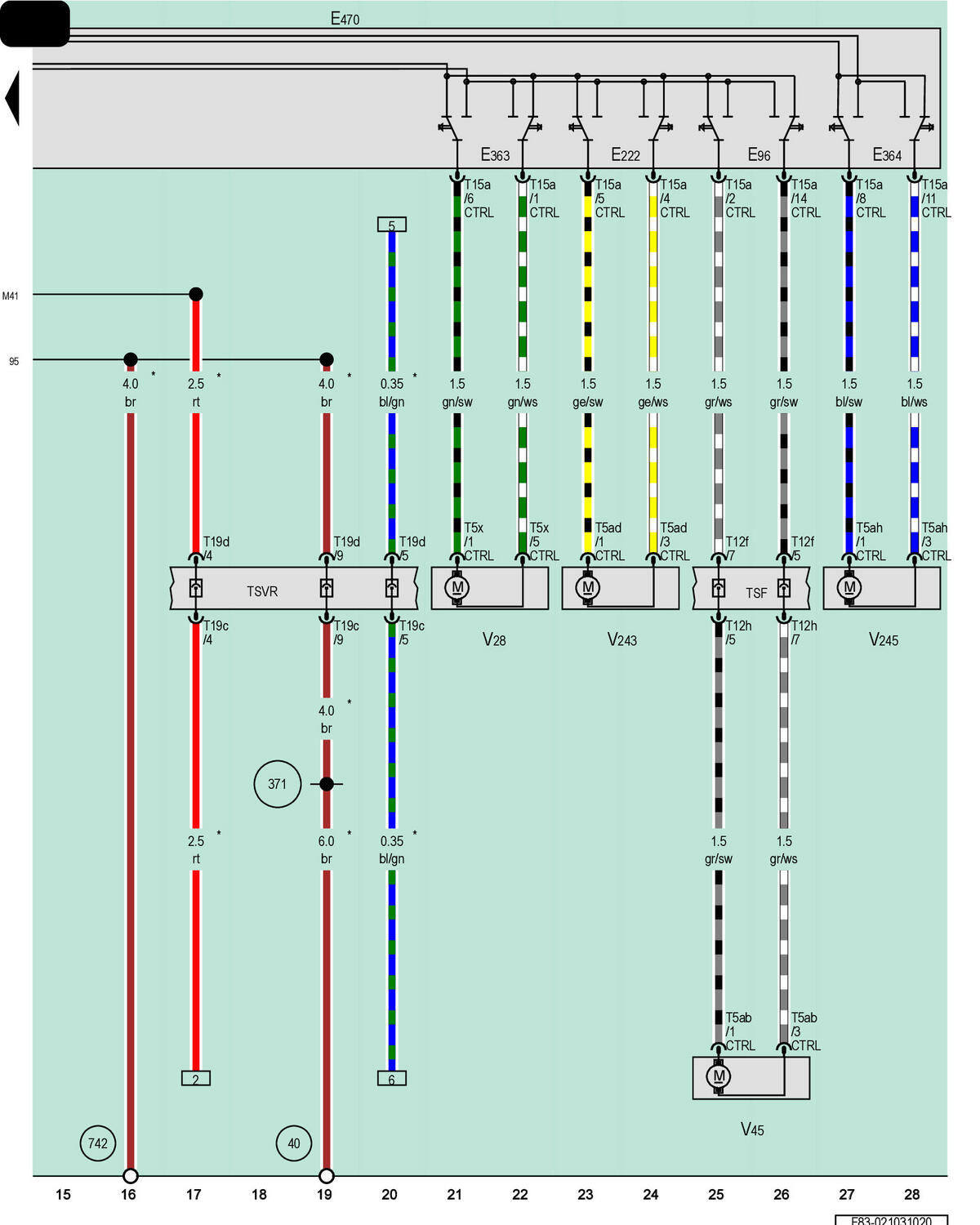

Driver Seat Adjustment Control Head, Driver Seat Forward/Back Adjustment Motor, Driver Backrest Adjustment Motor, Driver Seat Angle Adjustment Motor, Driver Seat Height Adjustment Motor
E96
Driver Backrest Adjustment Switch
E222
Driver Seat Angle Adjustment Switch
E363
Driver Seat Forward/Back Adjustment Switch
E364
Driver Seat Height Adjustment Switch
E470
Driver Seat Adjustment Control Head
T5ab
5-Pin Connector, Brown
T5ad
5-Pin Connector, Brown
T5ah
5-Pin Connector, Brown
T5x
5-Pin Connector, Black
T12f
12-Pin Connector, Brown
T12h
12-Pin Connector, Brown
T15a
15-Pin Connector, Purple
T19c
19-Pin Connector, Black
T19d
19-Pin Connector, Black
TSF
Driver Seat Backrest Coupling Point
TSVR
Right Front Seat Coupling Station
V28
Driver Seat Forward/Back Adjustment Motor
V45
Driver Backrest Adjustment Motor
V243
Driver Seat Angle Adjustment Motor
V245
Driver Seat Height Adjustment Motor
40
Ground Connection Under Right Rear Bench Seat
95
Ground Connection 1 (in Seat Adjustment Wiring Harness)
371
Ground Connection 6 (in Main Wiring Harness)
742
Ground Connection Under Right Front Seat
M41
Connection 1 (in Driver Seat Wiring Harness)
*
For RHD Vehicles
