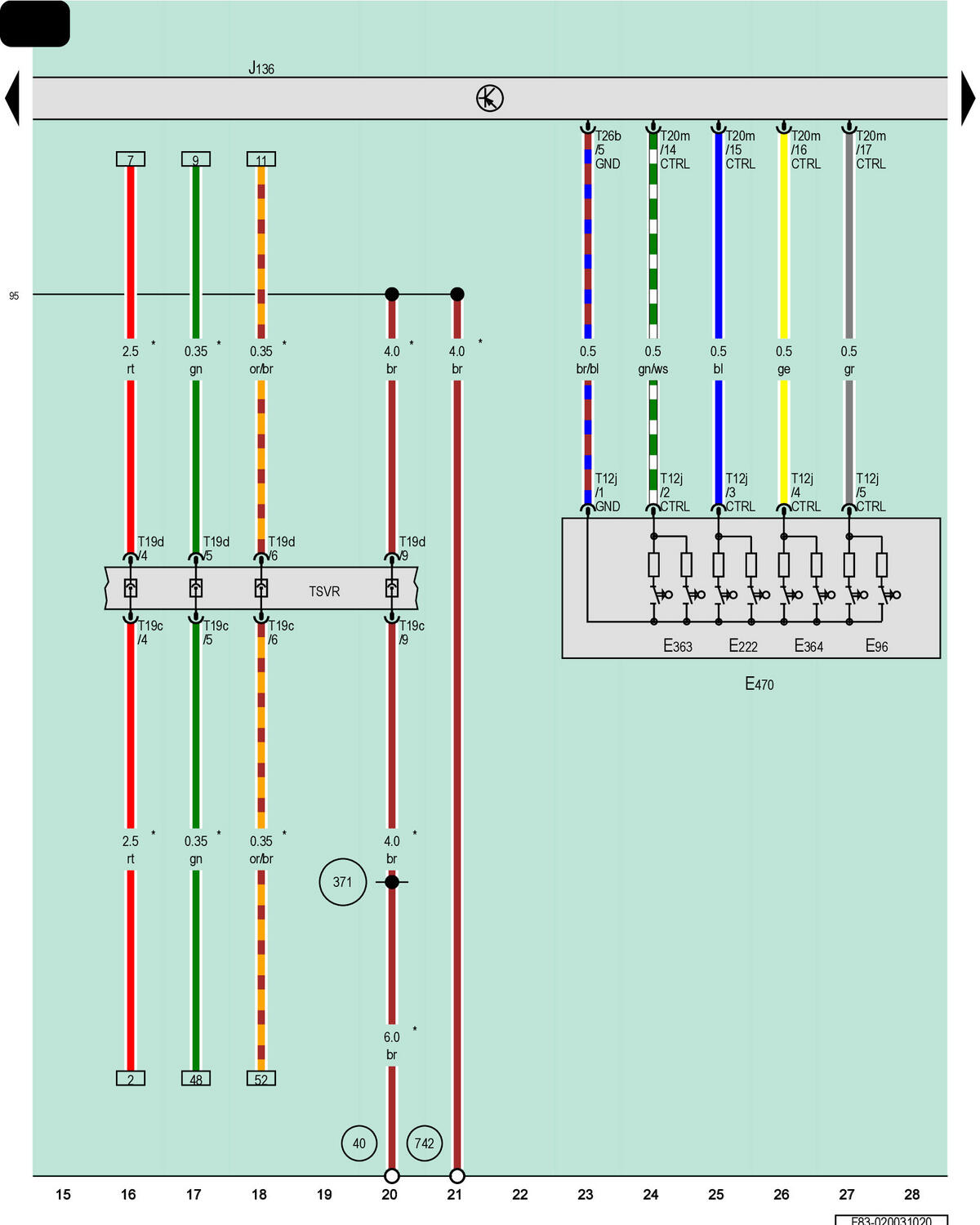

Driver Seat Adjustment Control Head, Memory Seat/Steering Column Adjustment Control Module

Courtesy of AUDI OF AMERICA, LLC

E96

Driver Backrest Adjustment Switch

E222

Driver Seat Angle Adjustment Switch

E363

Driver Seat Forward/Back Adjustment Switch

E364

Driver Seat Height Adjustment Switch

E470

Driver Seat Adjustment Control Head

J136

Memory Seat/Steering Column Adjustment Control Module

T12j

12-Pin Connector, Black

T19c

19-Pin Connector, Black

T19d

19-Pin Connector, Black

T20m

20-Pin Connector, Black

T26b

26-Pin Connector, White

TSVR

Right Front Seat Coupling Station

40

Ground Connection Under Right Rear Bench Seat

95

Ground Connection 1 (in Seat Adjustment Wiring Harness)

371

Ground Connection 6 (in Main Wiring Harness)

742

Ground Connection Under Right Front Seat

*

For RHD Vehicles
