Overview - Electric Coolant Pump

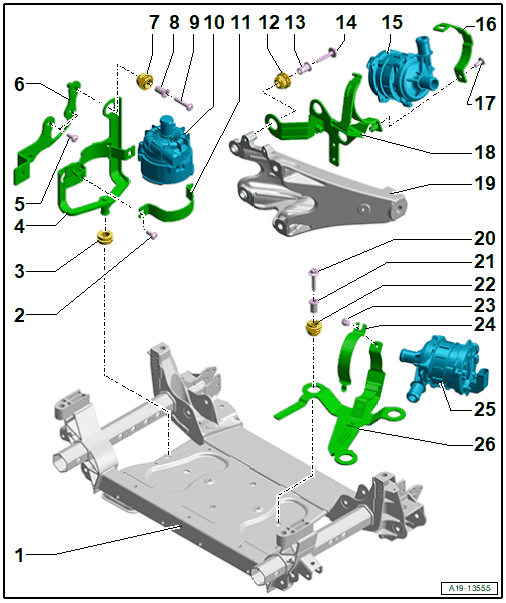

Fig 1: Exploded View Of Electric Coolant Pump

Courtesy of AUDI OF AMERICA, LLC

Subframe
Bolt
- Quantity: 2
- 8 Nm
Rubber Bushing
Bracket
Bolt
- 8 Nm
Bracket
Rubber Bushing
Spacer Sleeve
Bolt
- Quantity: 2
- 8 Nm
Thermal Management Coolant Pump 2 -V618-
- Refer to THERMAL MANAGEMENT COOLANT PUMP 2 V618, REMOVING AND INSTALLING .
Retaining Bracket
Rubber Bushing
Spacer Sleeve
Bolt
- Quantity: 3
- 8 Nm
High-Voltage Battery Coolant Pump -V590-
- Refer to HIGH-VOLTAGE BATTERY COOLANT PUMP V590, REMOVING AND INSTALLING .
Retaining Bracket
Bolt
- 8 Nm
Bracket
Left Rear Motor Support
Bolt
- Quantity: 3
- 8 Nm
Spacer Sleeve
Rubber Bushing
Bolt
- 8 Nm
Retaining Bracket
Thermal Management Coolant Pump 4 -V620-
- Refer to THERMAL MANAGEMENT COOLANT PUMP 4 V620, REMOVING AND INSTALLING .
Bracket
