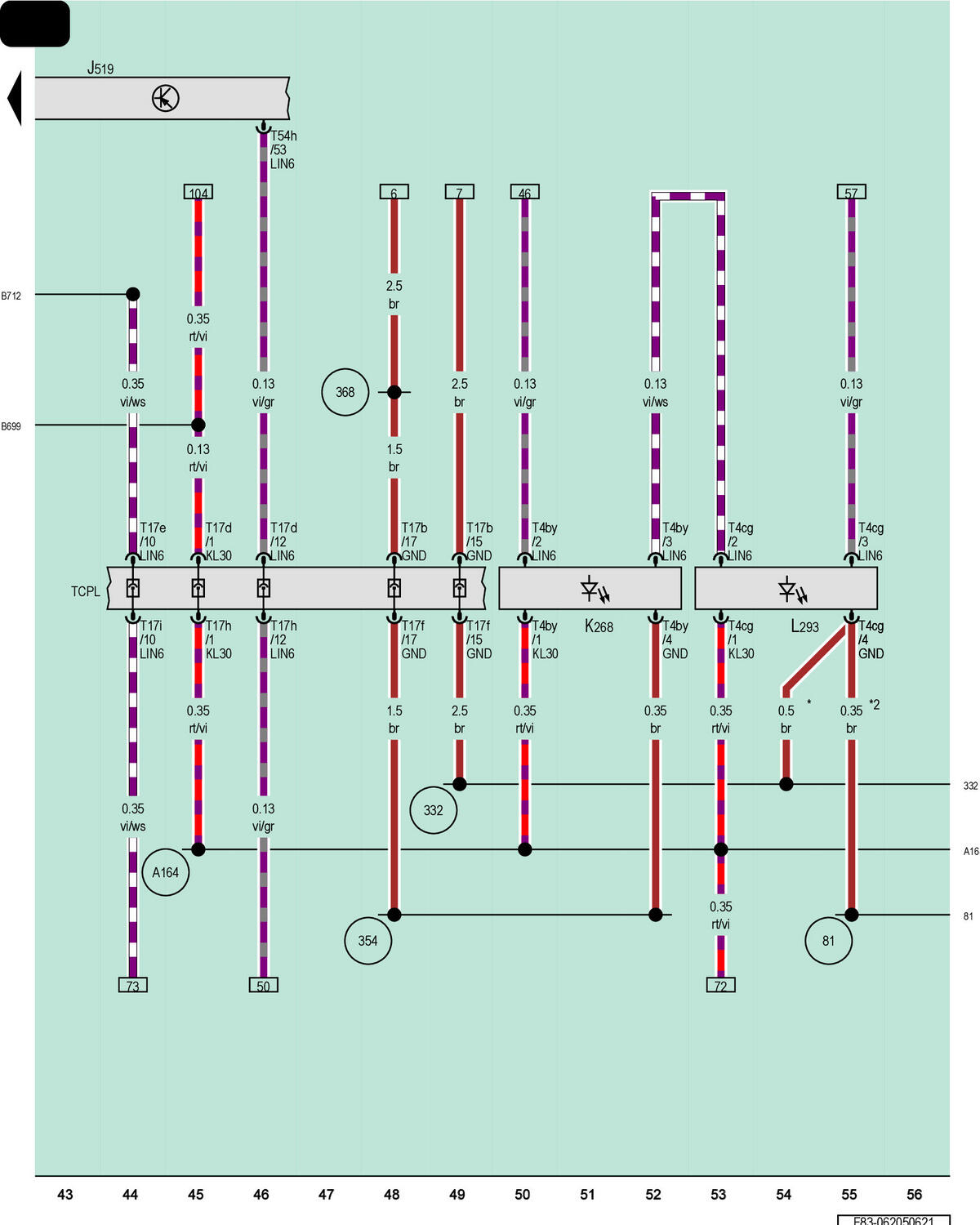

Vehicle Electrical System Control Module, Left Front FOOTWELL Lamp, Instrument Panel Ambient Lighting Lamp 2

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

K268

Left Front Footwell Lamp

L293

Instrument Panel Ambient Lighting Lamp 2

T4by

4-Pin Connector, Black

T4cg

4-Pin Connector, Brown

T17b

17-Pin Connector, Brown

T17d

17-Pin Connector, Blue

T17e

17-Pin Connector, Black

T17f

17-Pin Connector, Brown

T17h

17-Pin Connector, Blue

T17i

17-Pin Connector, Black

T54h

54-Pin Connector, Black

TCPL

Coupling Point on Instrument Panel, Left

81

Ground Connection 1 (in Instrument Panel Wiring Harness)

332

Ground Connection 4 (in Instrument Panel Wiring Harness)

354

Ground Connection 6 (in Instrument Panel Wiring Harness)

368

Ground Connection 3 (in Main Wiring Harness)

A164

Positive Connection 2 (30a) (in Instrument Panel Wiring Harness)

B699

LIN Bus Connection 4 (in Main Wiring Harness)

B712

LIN Bus Connection 7 (in Main Wiring Harness)

*

For LHD Vehicles

*2

For RHD Vehicles
