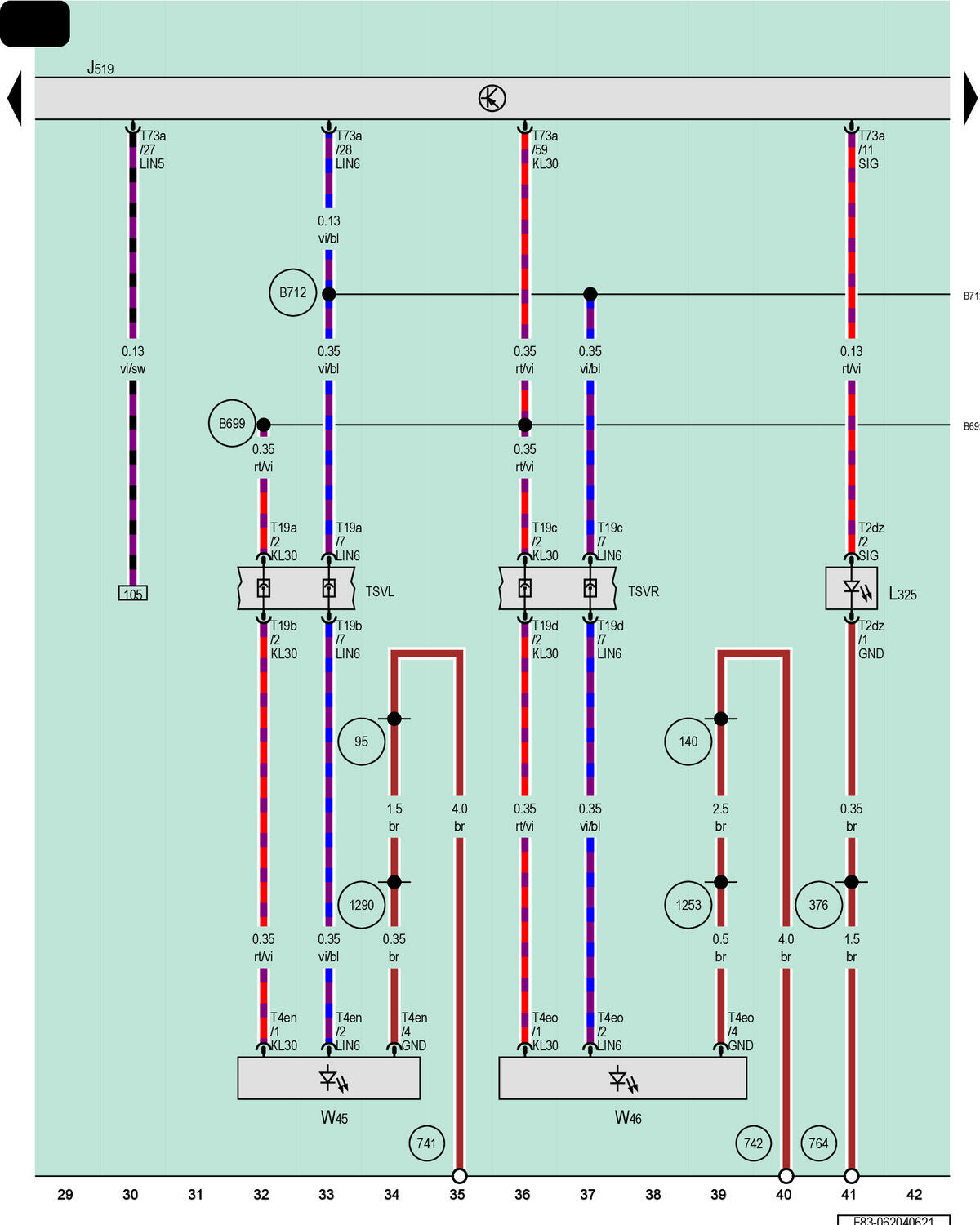

Vehicle Electrical System Control Module, Front Luggage Compartment Lamp, Left Rear FOOTWELL Lamp, Right Rear FOOTWELL Lamp
J519
Vehicle Electrical System Control Module
L325
Front Luggage Compartment Lamp
T2dz
2-Pin Connector, Black
T4en
4-Pin Connector, Black
T4eo
4-Pin Connector, Brown
T19a
19-Pin Connector, Black
T19b
19-Pin Connector, Black
T19c
19-Pin Connector, Black
T19d
19-Pin Connector, Black
T73a
73-Pin Connector, Black
TSVL
Left Front Seat Coupling Station
TSVR
Right Front Seat Coupling Station
W45
Left Rear Footwell Lamp
W46
Right Rear Footwell Lamp
95
Ground Connection 1 (in Seat Adjustment Wiring Harness)
140
Ground Connection 2 (in Seat Adjustment Wiring Harness)
376
Ground Connection 11 (in Main Wiring Harness)
741
Ground Connection Under Left Front Seat
742
Ground Connection Under Right Front Seat
764
Ground Connection Inside Left Front Wheel Housing
1253
Ground Connection 6 (in Seat Adjustment Wiring Harness)
1290
Ground Connection 1 (in Left Front Seat Wiring Harness)
B699
LIN Bus Connection 4 (in Main Wiring Harness)
B712
LIN Bus Connection 7 (in Main Wiring Harness)
