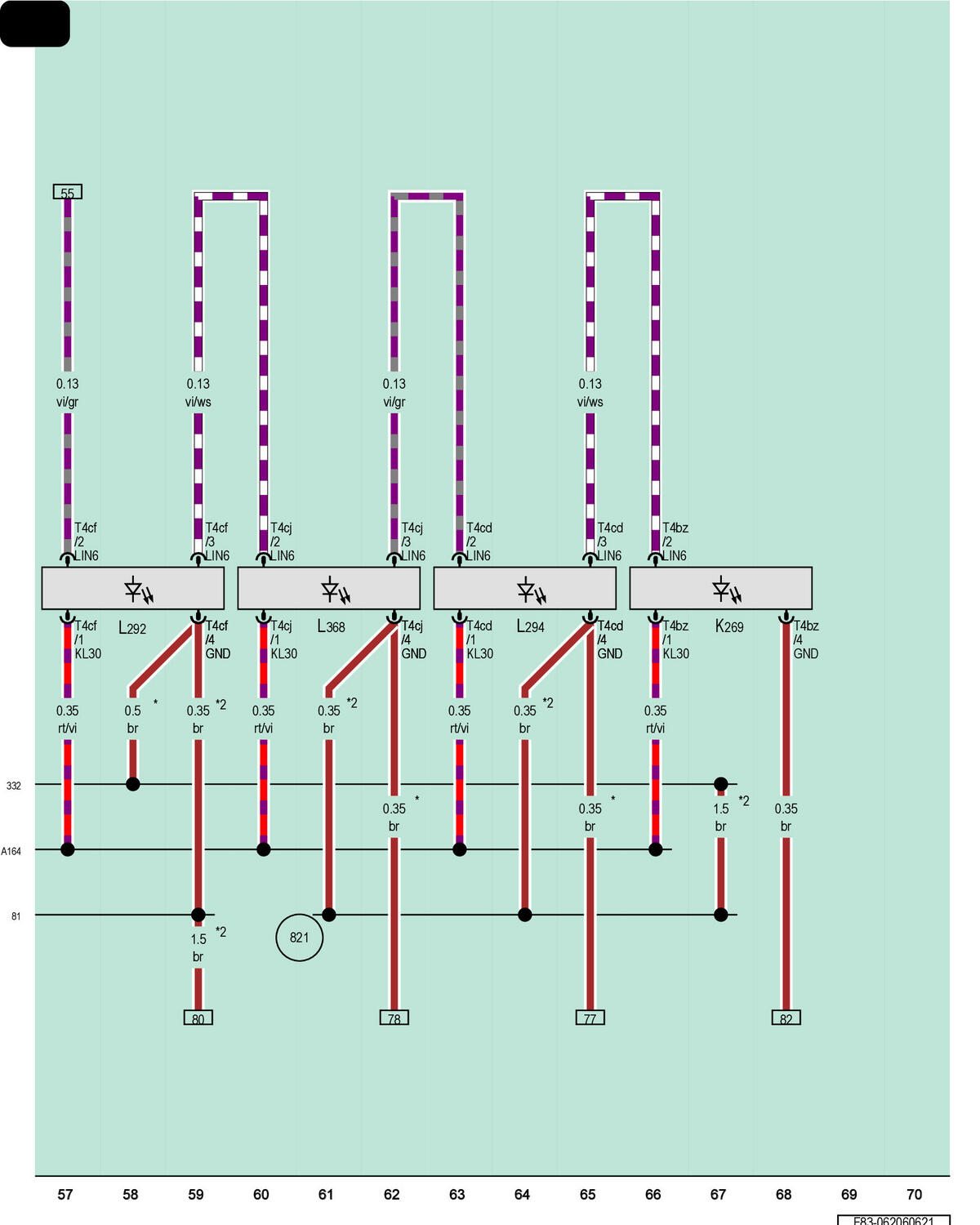

Right Front FOOTWELL Lamp, Instrument Panel Ambient Lighting Lamp 1, Instrument Panel Ambient Lighting Lamp 3, Ambient Lighting For Emblem In Front Passenger Side Instrument Panel

Courtesy of AUDI OF AMERICA, LLC

K269

Right Front Footwell Lamp

L292

Instrument Panel Ambient Lighting Lamp 1

L294

Instrument Panel Ambient Lighting Lamp 3

L368

Ambient Lighting for Emblem in Front Passenger Side Instrument Panel

T4bz

4-Pin Connector, Brown

T4cd

4-Pin Connector, Black

T4cf

4-Pin Connector, Black

T4cj

4-Pin Connector, Brown

81

Ground Connection 1 (in Instrument Panel Wiring Harness)

332

Ground Connection 4 (in Instrument Panel Wiring Harness)

821

Ground Connection 7 (in Instrument Panel Wiring Harness)

A164

Positive Connection 2 (30a) (in Instrument Panel Wiring Harness)

*

For LHD Vehicles

*2

For RHD Vehicles
