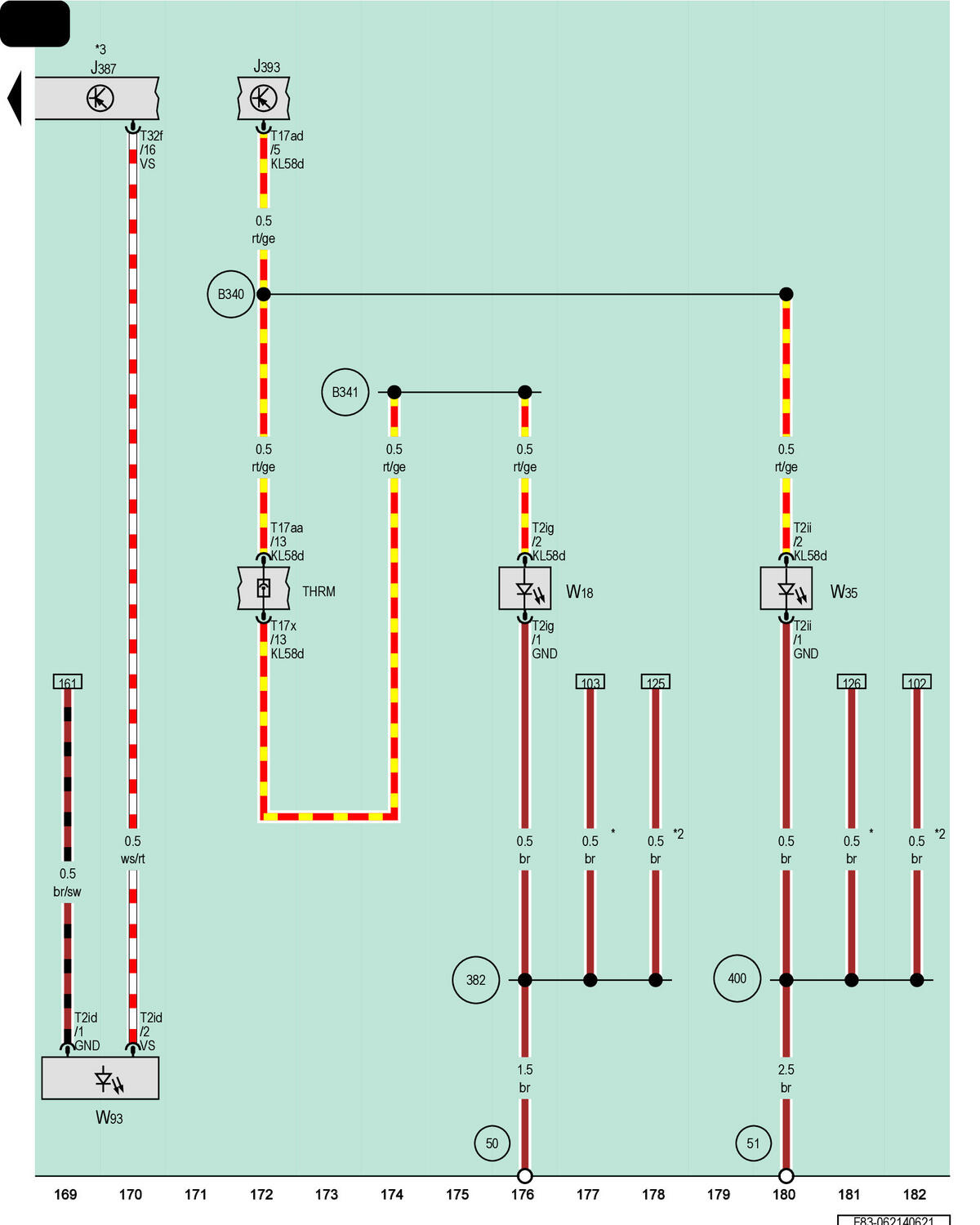

Front Passenger Door Control Module, Comfort System Central Control Module, Left Luggage Compartment Lamp, Right Luggage Compartment Lamp, Passenger Side Entry Lamp

Courtesy of AUDI OF AMERICA, LLC

J387

Front Passenger Door Control Module

J393

Comfort System Central Control Module

T2id

2-Pin Connector, Black

T2ig

2-Pin Connector, Black

T2ii

2-Pin Connector, Black

T17aa

17-Pin Connector, Black

T17ad

17-Pin Connector, Brown

T17x

17-Pin Connector, Black

T32f

32-Pin Connector, Blue

THRM

Coupling Point in Luggage Compartment, Center

W18

Left Luggage Compartment Lamp

W35

Right Luggage Compartment Lamp

W93

Passenger Side Entry Lamp

50

Ground Connection in Luggage Compartment, Left

51

Ground Connection in Luggage Compartment, Right

382

Ground Connection 17 (in Main Wiring Harness)

400

Ground Connection 35 (in Main Wiring Harness)

B340

Connection 58d (in Main Wiring Harness) 1

B341

Connection 58d (in Main Wiring Harness) 2

*

For LHD Vehicles

*2

For RHD Vehicles

*3

Refer to Applicable Front Passenger Door Control Module Wiring Diagram
