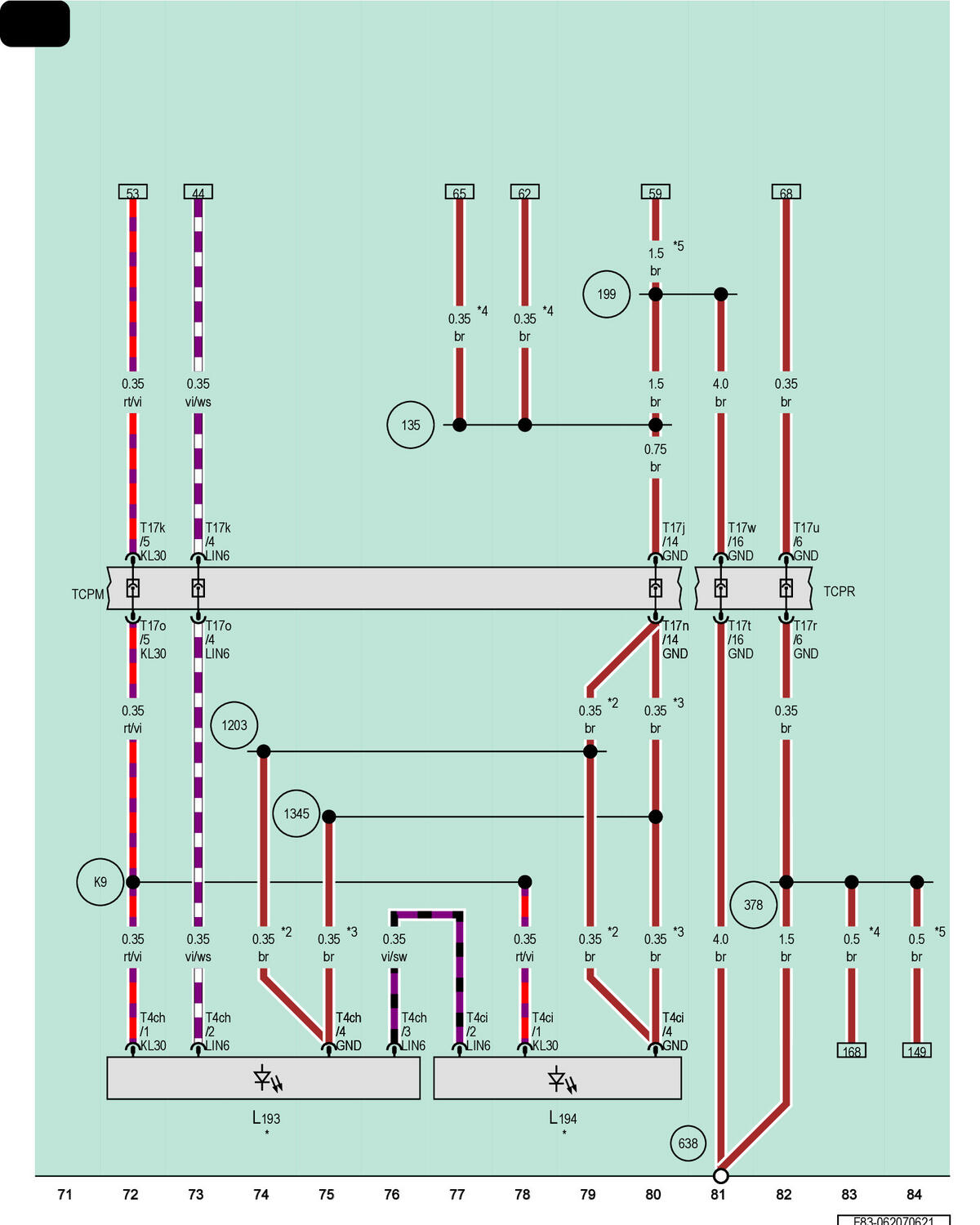

Front Center Console Ambient Lighting Bulb 1, Front Center Console Ambient Lighting Bulb 2
L193
Front Center Console Ambient Lighting Bulb 1
L194
Front Center Console Ambient Lighting Bulb 2
T4ch
4-Pin Connector, Black
T4ci
4-Pin Connector, Black
T17j
17-Pin Connector, Brown
T17k
17-Pin Connector, Red
T17n
17-Pin Connector, Brown
T17o
17-Pin Connector, Red
T17r
17-Pin Connector, Brown
T17t
17-Pin Connector, Blue
T17u
17-Pin Connector, Brown
T17w
17-Pin Connector, Blue
TCPM
Coupling Point on Instrument Panel, Center
TCPR
Coupling Point on Instrument Panel, Right
135
Ground Connection 2 (in Instrument Panel Wiring Harness)
199
Ground Connection 3 (in Instrument Panel Wiring Harness)
378
Ground Connection 13 (in Main Wiring Harness)
638
Ground Connection on Right A-Pillar
1203
Ground Connection (in Center Console Wiring Harness)
1345
Ground Connection 3 (in Center Console Wiring Harness)
K9
Connection 2 (in Center Console Wiring Harness)
*
Pre-Wired Component
*2
For Vehicles with Cell Phone Preparation
*3
For Vehicles with Cell Phone/Telephone
*4
For LHD Vehicles
*5
For RHD Vehicles
