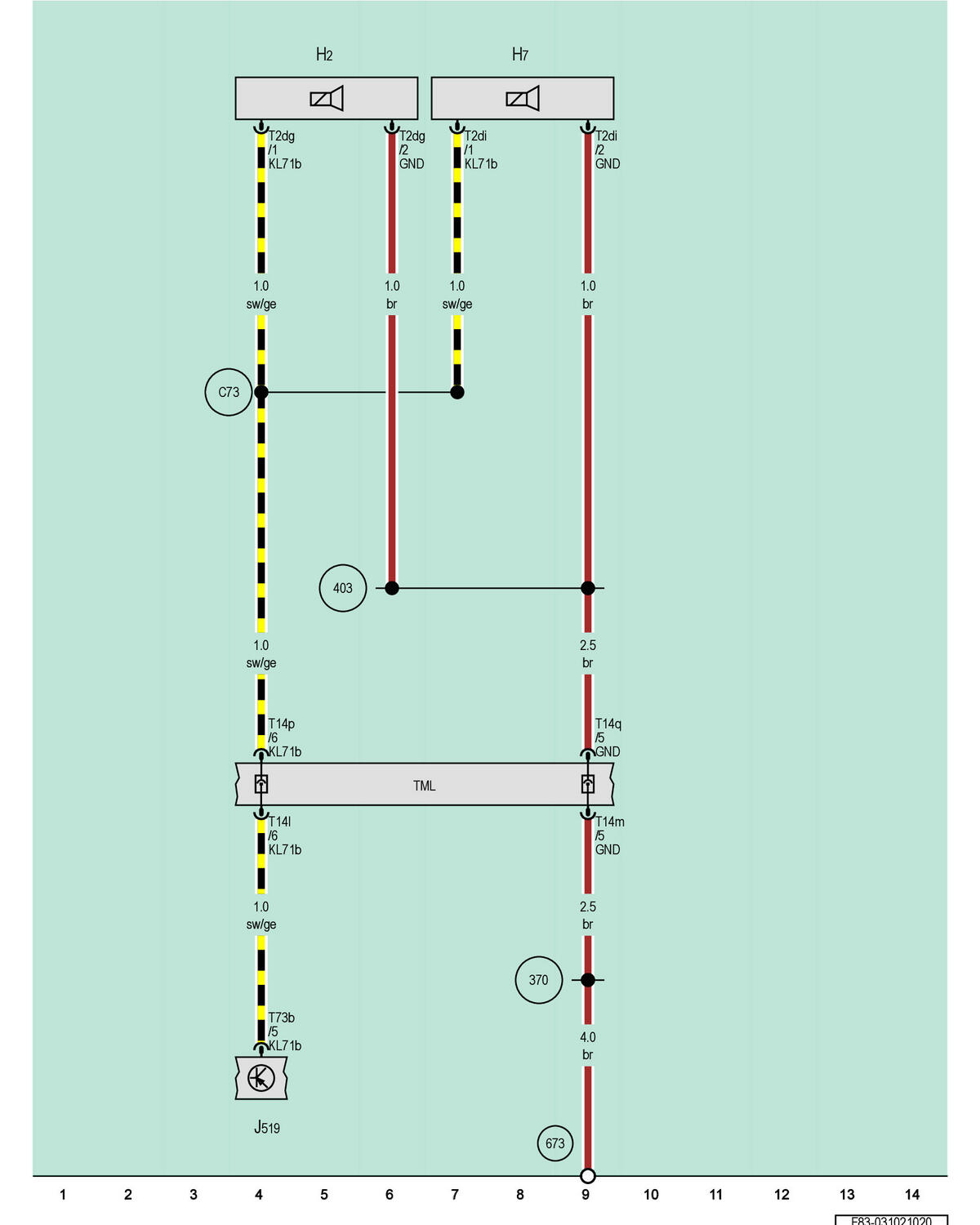

High Tone Horn, Low Tone Horn, Vehicle Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

H2

High Tone Horn

H7

Low Tone Horn

J519

Vehicle Electrical System Control Module

T2dg

2-Pin Connector, Black

T2di

2-Pin Connector, Black

T14l

14-Pin Connector, Black

T14m

14-Pin Connector, Gray

T14p

14-Pin Connector, Black

T14q

14-Pin Connector, Gray

T73b

73-Pin Connector, Black

TML

Coupling Point in Engine/Motor Compartment, Left

370

Ground Connection 5 (in Main Wiring Harness)

403

Ground Connection (in Front End Wiring Harness)

673

Ground Connection 3 on Left Front Longitudinal Member

C73

Connection (in Front End Wiring Harness)
