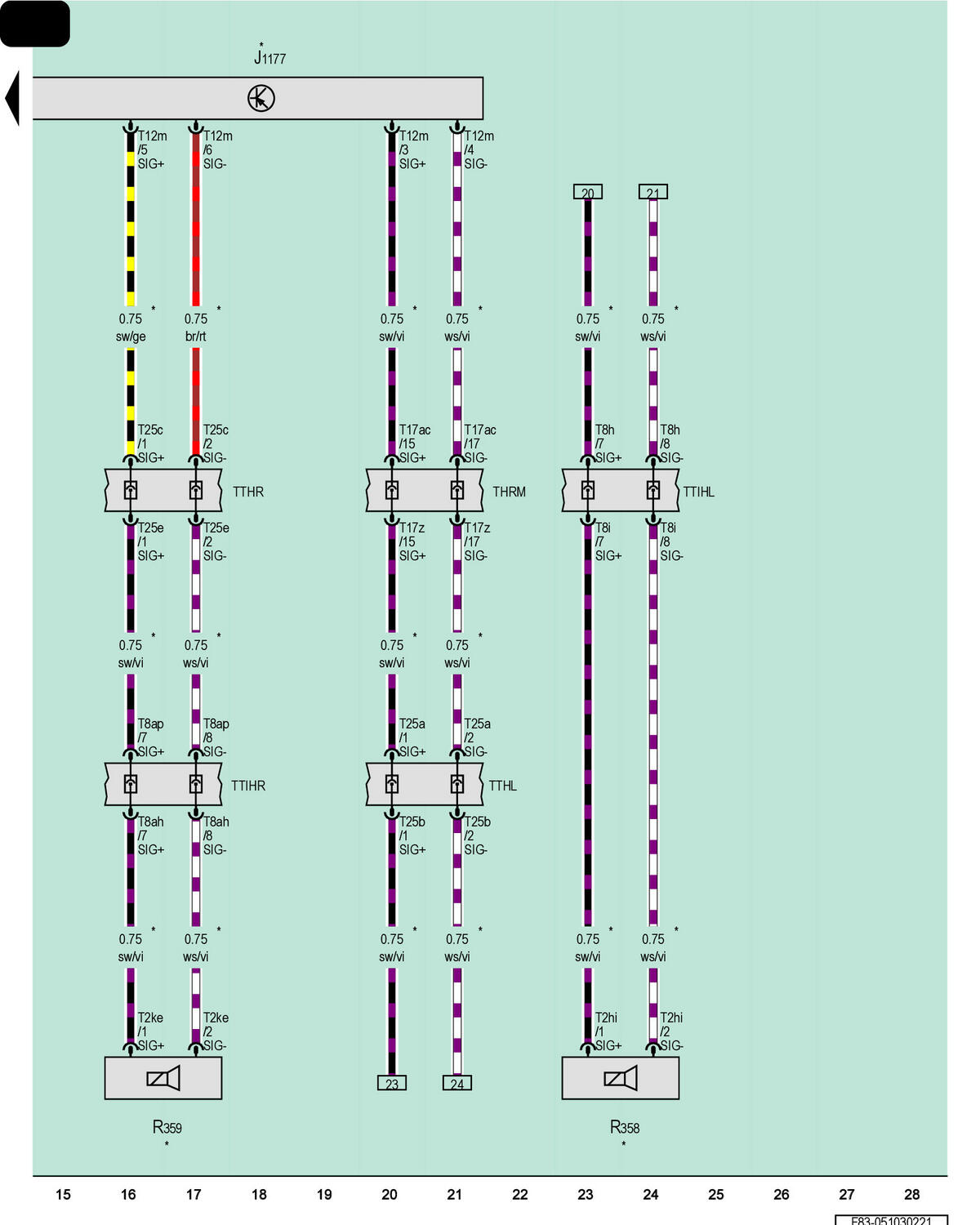

Engine Sound Generator Control Module 3, Left Rear Midrange Speaker With Auxiliary Interior Speaker, Right Rear Midrange Speaker With Auxiliary Interior Speaker
J1177
Engine Sound Generator Control Module 3
R358
Left Rear Midrange Speaker with Auxiliary Interior Speaker
R359
Right Rear Midrange Speaker with Auxiliary Interior Speaker
T2hi
2-Pin Connector, Naturally Cloudy
T2ke
2-Pin Connector, Naturally Cloudy
T8ah
8-Pin Connector, Black
T8ap
8-Pin Connector, Black
T8h
8-Pin Connector, Black
T8i
8-Pin Connector, Black
T12m
12-Pin Connector, Black
T17ac
17-Pin Connector, Blue
T17z
17-Pin Connector, Blue
T25a
25-Pin Connector, Green
T25b
25-Pin Connector, Green
T25c
25-Pin Connector, Green
T25e
25-Pin Connector, Green
THRM
Coupling Point in Luggage Compartment, Center
TTHL
Left Rear Door Coupling Point
TTHR
Right Rear Door Coupling Point
TTIHL
Coupling Point in Left Rear Door
TTIHR
Coupling Point in Right Rear Door
*
Optional Equipment
