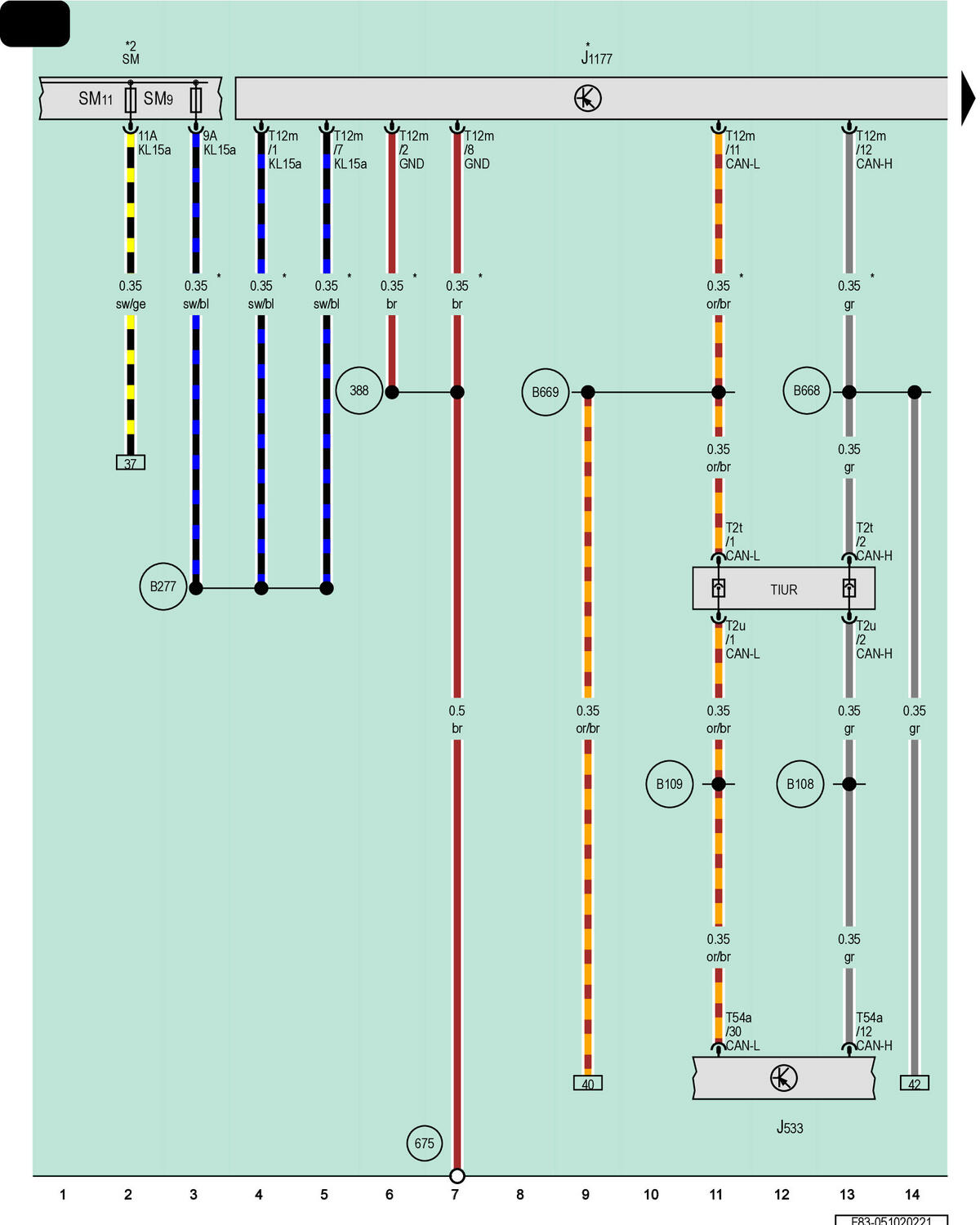

Data Bus On Board Diagnostic Interface, Engine Sound Generator Control Module 3

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J1177

Engine Sound Generator Control Module 3

SM

Fuse Panel M

SM9

Fuse 9 on Fuse Panel M

SM11

Fuse 11 on Fuse Panel M

T2t

2-Pin Connector, Black

T2u

2-Pin Connector, Black

T12m

12-Pin Connector, Black

T54a

54-Pin Connector, Black

TIUR

Coupling Point in Interior, Bottom Right

388

Ground Connection 23 (in Main Wiring Harness)

675

Ground Connection 2 in Luggage Compartment on Right Side

B108

CAN Bus Extended High Connection 1 (in Main Wiring Harness)

B109

CAN Bus Extended Low Connection 1 (in Main Wiring Harness)

B277

Positive Connection 1 (15a) (in Main Wiring Harness)

B668

CAN Bus Extended High Connection 2 (in Main Wiring Harness)

B669

CAN Bus Extended Low Connection 2 (in Main Wiring Harness)

*

Optional Equipment

*2

Refer to Applicable Wiring Diagram for Fuses in Luggage Compartment
