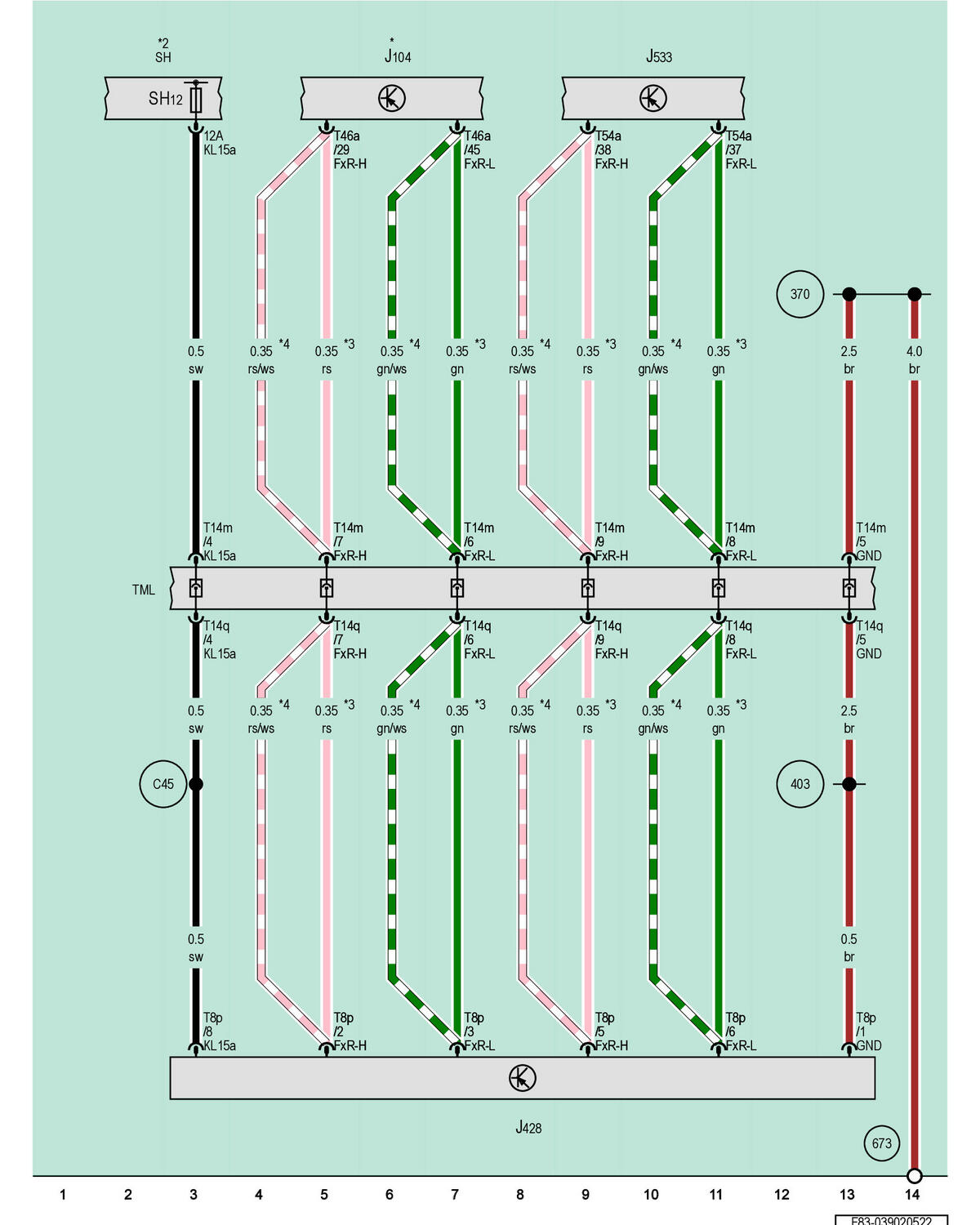

Abs Control Module, Control Module For Adaptive Cruise Control, Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

J104

ABS Control Module

J428

Control Module for Adaptive Cruise Control

J533

Data Bus on Board Diagnostic Interface

Fuse Panel H

SH12

Fuse 12 on Fuse Panel H

T8p

8-Pin Connector, Black

T14m

14-Pin Connector, Gray

T14q

14-Pin Connector, Gray

T46a

46-Pin Connector, Black

T54a

54-Pin Connector, Black

TML

Coupling Point in Engine/Motor Compartment, Left

370

Ground Connection 5 (in Main Wiring Harness)

403

Ground Connection (in Front End Wiring Harness)

673

Ground Connection 3 on Left Front Longitudinal Member

C45

Positive Connection 1 (15) (in Front Wiring Harness)

Refer to Applicable ABS Wiring Diagram

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

Omitted as a Running Change

Running Change
