Overview - Center Console

Overview - Center Console

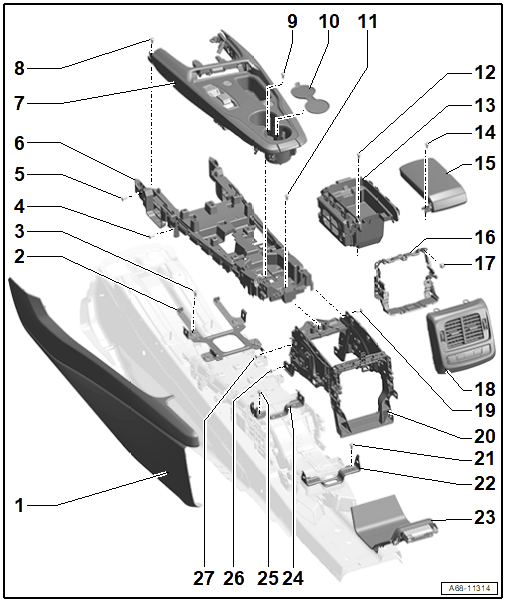

Fig 1: Exploded View Of Center Console

Courtesy of AUDI OF AMERICA, LLC

1. Side Trim Panel for Center Console
   • Refer to Center Console Trim Panel, Removing and Installing  .
2. Front Bracket
   • Refer to Center Console Bracket, Removing and Installing  .
3. Bolt
   • 8 Nm
   • Quantity: 4
4. Bolt
   • 3 Nm
   • Quantity: 4
5. Bolt
   • 3 Nm
   • Quantity: 2
6. Front Center Console Support
   • Refer to FRONT CENTER CONSOLE SUPPORT, REMOVING AND INSTALLING
7. Center Console Insert
   • Refer to Center Console Insert, Removing and Installing  .
8. Bolt
   • 1.5 Nm
   • Quantity: 2
9. Bolt
   • 3 Nm
10. Cupholder Insert
11. Bolt
    • 3 Nm
    • Quantity: 3
12. Bolt
    • 3 Nm
13. Storage Compartment
    • Refer to CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING
14. Bolt
    • 12.3 Nm
    • Quantity: 2
15. Storage Compartment Cover
    • Refer to CENTER CONSOLE STORAGE COMPARTMENT COVER, REMOVING AND INSTALLING
16. Vent Support
    • Refer to VENT SUPPORT, REMOVING AND INSTALLING
17. Bolt
    • 3 Nm
    • Quantity: 4
18. Rear Vent
    • Installed depending on vehicle equipment
    • Refer to Rear Center Console Vent, Removing and Installing  .
19. Bolt
    • 3 Nm
    • Quantity: 2
20. Rear Center Console Support
    • Refer to REAR CENTER CONSOLE SUPPORT, REMOVING AND INSTALLING
21. Bolt
    • 8 Nm
    • Quantity: 2
22. Rear Bracket
    • Refer to Center Console Bracket, Removing and Installing  .
23. Rear Center Console Trim
    • Refer to Center Console Rear Trim, Removing and Installing  .
24. Center Bracket
    • Refer to Center Console Bracket, Removing and Installing  .
25. Bolt
    • 8 Nm
    • Quantity: 2
26. Bolt
    • 8 Nm
    • Quantity: 6
27. Bolt
    • 3 Nm
    • Quantity: 4

Overview - Center Console Attachments

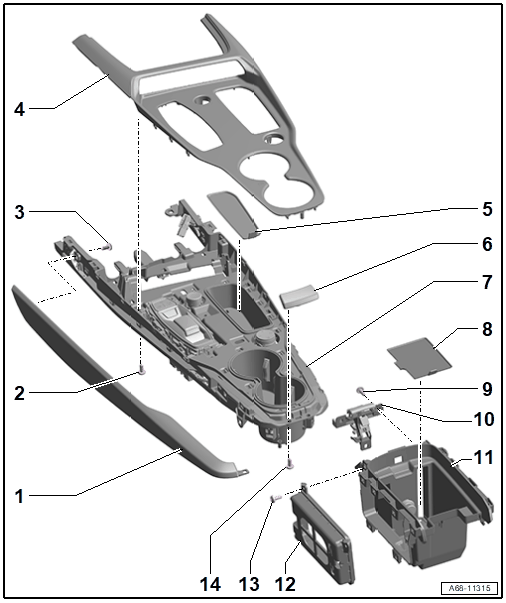

Fig 2: Exploded View Of Center Console Attachments

Courtesy of AUDI OF AMERICA, LLC

1. Upper Side Trim Panel for Center Console
   • Refer to UPPER SIDE CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING
2. Bolt
   • 1.5 Nm
   • Quantity: 4
3. Bolt
   • 1.5 Nm
4. Center Console Decorative Trim
   • Press on until stop
   • Refer to Center Console Decorative Trim, Removing and Installing  .
5. Insert
6. Center Upper Trim Panel for Center Console
   • Refer to UPPER SIDE CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING
7. Center Console Insert
   • Refer to Center Console Insert, Removing and Installing  .
8. Storage Compartment Insert
9. Bolt
   • 1.5 Nm
   • Quantity: 3
10. Storage Compartment Cover Button
    • Refer to UPPER SIDE CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING
11. Rear Storage Compartment
    • Refer to CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING
12. Storage Compartment Cover
    • Refer to STORAGE COMPARTMENT COVER, REMOVING AND INSTALLING
13. Bolt
    • 3 Nm
    • Quantity: 4
14. Bolt
    • 1.5 Nm
    • Quantity: 2
