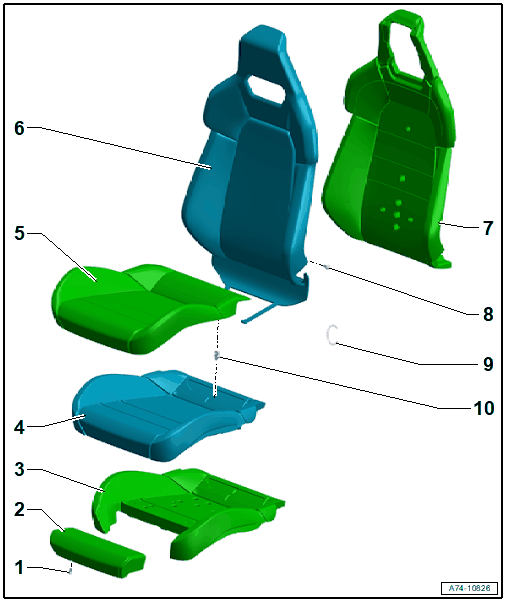

Overview - Cover And Cushion

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 4 Nm
- Quantity: 2
Seat Depth Adjuster Cushion
- Only Sport/Comfort seat (Q1J/Q2J)
- Refer to SEAT DEPTH ADJUSTER CUSHION, REMOVING AND INSTALLING
- Equipment versions with seat heating: attach a new heating element when replacing. Refer to SEAT DEPTH ADJUSTER HEATING ELEMENT, REMOVING AND INSTALLING .
Seat Cushion
- Sport/Comfort seat (Q1J/Q2J)
- Refer to Seat Pan Cover and Cushion, Removing and Installing .
- Refer to Cover and Cushion, Separating from Seat Pan .
- Equipment versions with seat heating: attach a new heating element when replacing. Refer to Seat Heating Element, Removing and Installing .
Seat Cushion
- Standard seat (Q1G)
- Refer to Seat Pan Cover and Cushion, Removing and Installing .
- Refer to Cover and Cushion, Separating from Seat Pan .
- Equipment versions with seat heating: attach a new heating element when replacing. Refer to Seat Heating Element, Removing and Installing .
Seat Cover
- Refer to Seat Pan Cover and Cushion, Removing and Installing .
- Refer to Cover and Cushion, Separating from Seat Pan .
Backrest Cover
- Refer to Backrest Cover and Cushion, Removing and Installing .
- Refer to Backrest Cover and Cushion, Separating .
Backrest Cushion
- Refer to Backrest Cover and Cushion, Removing and Installing .
- Refer to Backrest Cover and Cushion, Separating .
- Equipment versions with seat heating: attach a new heating element when replacing. Refer to Backrest Heating Element, Removing and Installing .
Clip
- Quantity: 3
Upholstery Clip
- Replace after removing
- For securing the cover to the cushion
- Install at the same location with Upholstery Clip Pliers:VAG1634A .
Clip
- For securing the seat cover and seat cushion to the seat pan
- Clipped in on the contour wire in the seat cover and in the seat pan
- Quantity: 6
