Overview - Rear Seat Backrest

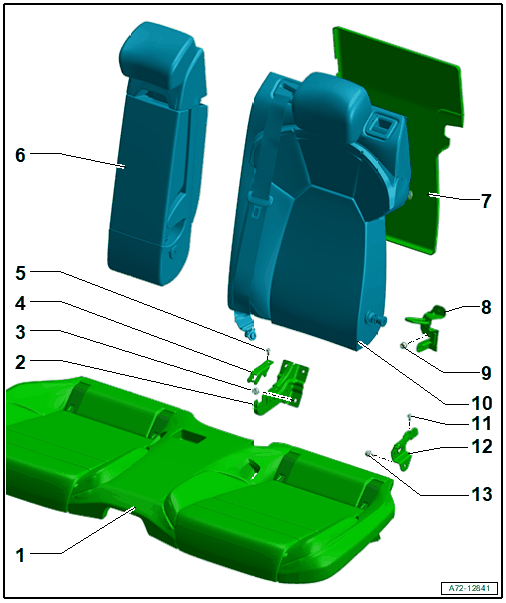

Fig 1: Exploded View Of Rear Seat Backrest

Courtesy of AUDI OF AMERICA, LLC

Rear Bench Seat
- Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
Center Support
- Refer to CENTER BRACKET, REMOVING AND INSTALLING
Bolt
- 27 Nm
- Quantity: 4
Center Bearing Securing Bracket
- Refer to CENTER BRACKET, REMOVING AND INSTALLING
Bolt
- 10 Nm
- Secured with washer on the securing bracket
Backrest with Pass-Through
- Refer to BACKREST WITH PASS-THROUGH, REMOVING AND INSTALLING
Trim Panel
- Bonded on the rear seat backrest
Rear Seat Backrest Striker
- Refer to STRIKER, REMOVING AND INSTALLING
Bolt
- 27 Nm
- Quantity: 2
Rear Seat Backrest
- Left
- Refer to Rear Seat Backrest, Removing and Installing .
Bolt
- 10 Nm
- For the outer bearing striker
- Secured with washer on the securing bracket
Outer Bearing
- Refer to OUTER BEARING, REMOVING AND INSTALLING
Bolt
- 27 Nm
- Quantity: 2
