Pneumatic Lines, Disconnecting And Connecting

Separating

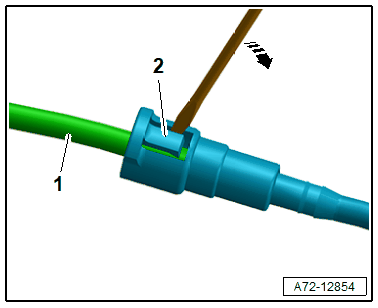

-- Carefully lift the catch -2- with a small flat-head screwdriver slightly in direction of -arrow- and remove the pneumatic line -1-.

Courtesy of AUDI OF AMERICA, LLC

Connecting

-- Attach the pneumatic line -1- until it audibly locks into place.

-- Pull on the pneumatic line to make sure it is completely connected.

Tightening Specifications

• Refer to CONNECTION DIAGRAM - PNEUMATIC SYSTEM
