Overview - Front Wheel Housing Liner

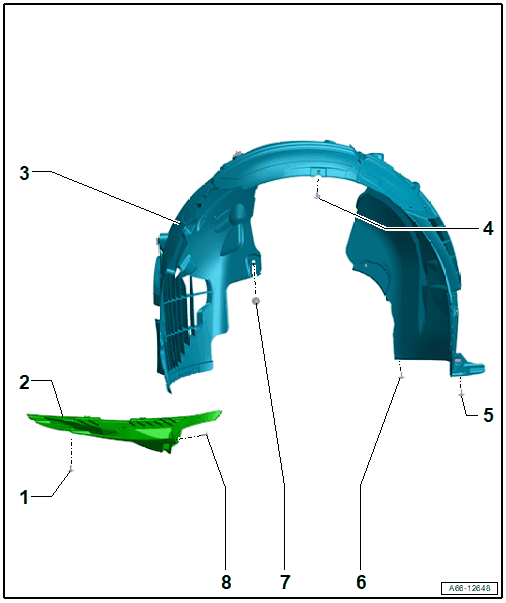

Fig 1: Exploded View Of Front Wheel Housing Liner
GWWA66-12648Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • Quantity: 5
    • 2.5 Nm
  2. Wheel Spoiler
    • To remove, turn the front wheels
  3. Wheel Housing Liner
    • To remove, turn the front wheels
  4. Bolt
    • Quantity: 8
    • 2.5 Nm
  5. Bolt
    • Quantity: 3
    • 2.5 Nm
  6. Bolt
    • Quantity: 2
    • 2.5 Nm
  7. Nut
    • Quantity: 2
    • 2.5 Nm
  8. Bolt
    • Quantity: 3
    • 2.5 Nm
