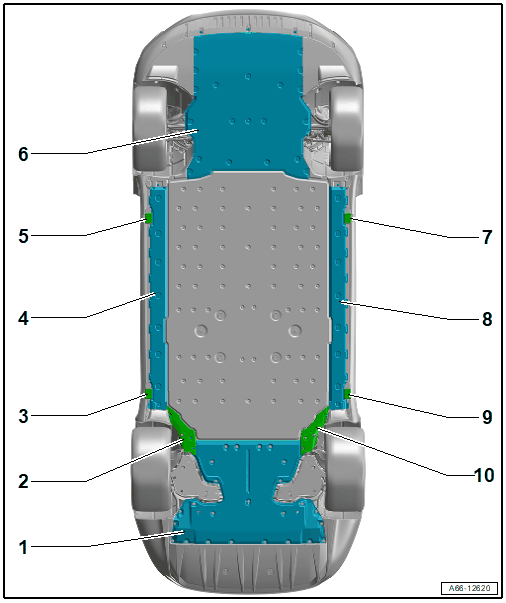

Overview - Underbody Trim Panels

GWWA66-12620

Courtesy of AUDI OF AMERICA, LLC

Rear Underbody Trim Panel
- Bolts: 2.5 Nm
Right Rear Cover
- Bolts: 2.5 Nm
Vehicle Lifting Point
Right Side Underbody Trim Panel
- Bolts: 2.5 Nm
Vehicle Lifting Point
Front Underbody Panel
- Bolts: 2.5 Nm
Vehicle Lifting Point
Left Side Underbody Trim Panel
- Bolts: 2.5 Nm
Vehicle Lifting Point
Left Rear Cover
- Bolts: 2.5 Nm
