Lower Center Cushion, Removing And Installing: Removing

-- Remove the backrest with pass-through. Refer to BACKREST WITH PASS-THROUGH, REMOVING AND INSTALLING .

-- Remove the side trim panels. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .

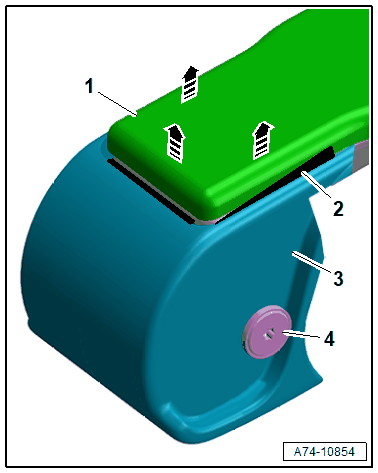

-- Pry out the trim panel -1- from the backrest frame, out of the groove in direction of -arrows- using scraper no. 1 from the Scraper Set: VAS6845  .

Courtesy of AUDI OF AMERICA, LLC

-- Use a flat-head screwdriver to pry out the clamping strip -2- for the cover from the backrest frame and remove.

-- Carefully disengage and remove the right and left cover -3- from the bearing -4-.

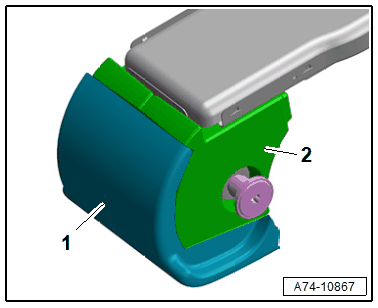

-- Carefully loosen and remove the center cushion -1- from the center section -2-.

Courtesy of AUDI OF AMERICA, LLC
