Backrest Heating Element, Removing And Installing: Removing
The old heating elements remain on the cushion and will be covered over by the new heating elements.
-- Separate the cover and cushion. Refer to COVER AND CUSHION, SEPARATING, REAR SEAT BACKREST .
-- Cut the wire directly on the old heating element.

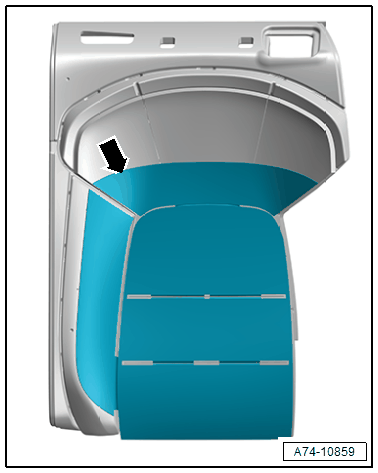

-- Align the new heating element -arrow- on the cushion.
-- Peel the protective film off the heating element one after the other. Be careful not to damage the heating element.
-- Glue the heating element so that it aligns with the old heating element and is not wrinkled.
-- Route the connecting wires to the individual heating elements in the base of the gaps.
